Принципы операционной системы

Вступление

Тема этой книги - операционная система , которая радикально ничем не отличается от других больших программ. Проблемы при ее разработке такие же , как и в остальных случаях при разработке таких больших программ, как например компиляторы. Историческое значение операционных систем в том , что они привели к открытию новых принципов совместного использования ресурсов , мультипрограммирования , конструирования программ.

Задача операционной системы - распределение ресурсов между пользователями. Для решения этой задачи разработчик должен ввести ограничения. Один процессор может выполнять несколько различных вычислений, создавая иллюзию , что они происходят одновременно. Ось постоянно сталкивается с непредсказуемыми ситуациями,большим количеством различных запросов, и она обязана распределять ресурсы между ними таким образом , чтобы каждый запрос получал адекватный по времени ответ. Некоторые компоненты компьютера могут работать одновременно. Проблемы , возникающие при программировании таких параллельных процессов, заключаются в том , что очень сложно выявить ошибки при их тестировании. Желательно выявлять такие ошибки еще на этапе компиляции. В этой книге используется паскаль при обьяснении основных концепций и алгоритмов.

Книга состоит из 8 глав:
Часть 1 - обзорная. Обясняются цели и принципы операционных систем, исторический взгляд на их разработку. Показаны их технологические ограничения и возможности.
Часть 2 - показывает роль абстрактно-структурированного подхода при возникающих вычислительных проблемах.Даются примеры последовательных программ и иерархических програмных конструкций.
Часть 3 - о параллельных процессах,методах синхронизации, семафорах,очередях,дидлоках.
Глава 4 - о планировщике процессов и real-time характеристиках.
Глава 5 - управление памятью .
Глава 6 - рассматривается теория планирования процессов на одно-процессорных системах.
Глава 7 - защита и распределение ресурсов системы. Рассматривается взаимодействие таких систем,как управление процессами, памятью,input/output, preemptive scheduling.
Глава 8 - конкретный пример системы на основе RC 4000.

Часть 1 - Обзор операционных систем

1,1. THE PURPOSE OF AN OPERATING SYSTEM

1.1.1. Resource Sharing

An operating system is a set of manual and automatic procedures that enable a group of people to share a computer installation efficiently.

The key word in this definition is sharing: it means that people will compete for the use of physical resources such as processor time, storage space, and peripheral devices; but it also means that people can cooperate by exchanging programs and data on the same installation. The sharing of a computer installation is an economic necessity, and the purpose of an operating system is to make the sharing tolerable.

An operating system must have a policy for choosing the order in which competing users are served and for resolving conflicts of simultaneous requests for the same resources; it must also have means of enforcing this policy in spite of the presence of erroneous or malicious user programs.

Present computer installations can execute several user programs simultaneously and allow users to retain data on backing storage for weeks or months. The simultaneous presence of data and programs belonging to different users requires that an operating system protect users against each other.

Since users must pay for the cost of computing, an operating system must also perform accounting of the usage of resources.

In early computer installations, operators carried out most of these functions. The purpose of present operating systems is to carry out these tasks automatically by means of the computer itself. But when all these aspects of sharing are automated, it becomes quite difficult for the installation management to find out what the computer is actually doing and to modify the rules of sharing to improve performance. A good operating system will assist management in this evaluation by collecting measurements on the utilization of the equipment.

Most components of present computer installations are sequential in nature: they can only execute operations or transfer data items one at a time. But it is possible to have activities going on simultaneously in several of these components. This influences the design of operating systems so much that our subject can best be described as the management of shared multiprogramming systems.

1.1.2. Virtual Machines

An operating system defines several languages in which the rules of resource sharing and the requests for service can be described. One of these languages is the job control language, which enables users to identify themselves and describe the requirements of computational jobs: the types and amounts of resources needed, and the names of programs and data files used.

Another language is the virtual machine language: the set of machine operations available to a user during program execution. To maintain control of a computer installation and isolate users from each other, an operating system must prevent user programs from executing certain operations; otherwise, these programs could destroy procedures or data inside the operating system or start input/output on peripheral devices assigned to other users. So the set of machine operations available to users is normally a subset of the original machine language.

But users must have some means of doing input/output. The operating system enables them to do so by calling certain standard procedures that handle the peripherals in a well-defined manner. To the user programs, these standard procedures appear to be extensions of the machine language available to them. The user has the illusion of working on a machine that can execute programs written in this language. Because this machine is partly simulated by program, it is called a virtual machine. So an operating system makes a virtual machine available to each user and prevents these machines from interfering destructively with each other. The simultaneous presence of several users makes the virtual machines much slower than the physical machine.

An operating system can make the programming language of the virtual machine more attractive than that of the original machine. This can be done by relieving the user of the burden of technological details such as the physical identity of peripheral devices and minor differences in their operation. This enables the user to concentrate on logical concepts such as the names of data files and the transfer of data records to and from these files. The virtual machine can also be made more attractive by error correction techniques; these make the virtual machine appear more reliable than the real one (for example, by automatic repetition of unsuccessful input/output operations). In this way an operating system may succeed in making a virtue out of a necessity.

Yet another language is the one used inside the operating system itself to define the policy of sharing, the rules of protection, and so on. A certain amount of bitter experience with present operating systems has clearly shown that an operating system may turn out to be inefficient, unreliable, or built on wrong assumptions just like any other large program. Operating systems should be designed so that they are simple to understand, and easy to use and modify. Even if an operating system works correctly, there is still a need for experimenting with its policy towards users and for adapting it to the requirements of a particular environment, so it is important not only to give users an attractive programming language, but also to design good programming tools to be used inside the operating system itself. But since the operating system is imposed on everyone, it is extremely important that the language used to implement it reflect the underlying machine features in an efficient manner.

1.1.3. Operating Systems and User Programs

Operating systems are large programs developed and used by a changing group of people. They are often modified considerably during their lifetimes. Operating systems must necessarily impose certain restrictions on all users. But this should not lead us to regard them as being radically different from other programs--they are just complicated applications of general programming techniques.

During the construction of operating systems over the past decade, new methods of multiprogramming and resource sharing were discovered. We now realize that these methods are equally useful in other programming applications. Any large programming effort will be heavily influenced by the characteristics and amounts of physical resources available, by the possibility of executing smaller tasks simultaneously, and by the need for sharing a set of data among such tasks.

It may be useful to distinguish between operating systems and user computations because the former can enforce certain rules of behavior on the latter. But it is important to understand that each level of programming solves some aspect of resource allocation.

Let me give a few examples of the influence of resource sharing on the design of standard programs and user programs.

Store allocation. One of the main reasons for dividing a compiler into smaller parts (called passes) is to allocate storage efficiently. During a compilation, the passes can be loaded one at a time from drum or disk into a small internal store where they are executed.

Job scheduling. A data processing application for an industrial plant can involve quite complicated rules for the sequence in Which smaller tasks are scheduled for execution. There may be a daily job which records details of production; weekly and monthly jobs which compute wages; a yearly job associated with the fiscal year; and several other jobs. Such long-term scheduling of related jobs which share large data files is quite difficult to control automatically. In contrast, most operating systems only worry about the scheduling of independent jobs over time spans of a few minutes or hours.

Multiprogramming. To control an industrial process, engineers must be able to write programs that can carry out many tasks simultaneously, for example, measure process variables continuously, report alarms to operators, accumulate measurements of production, and print reports to management.

Program protection. The ability to protect smaller components of a large program against each other is essential in real-time applications (such as banking and ticket reservation) where the service of reliable program components must be continued while new components are being tested.

So the problems of resource sharing solved by operating systems repeat themselves in user programs; or, to put it differently, every large application of a computer includes a local operating system that coordinates resource sharing among smaller tasks of that application. What is normally called "the operating system" is just the one that coordinates the sharing of an entire installation among users.

When you realize that resource sharing is not a unique characteristic of operating systems, you may wonder whether the simulation of virtual machines makes operating systems different from other programs. But alas, a closer inspection shows that all programs simulate virtual machines.

Computer programs are designed to solve a class of problems such as the editing of all possible texts, the compilation of all possible Algol programs, the sorting of arbitrary sets of data, the computation of payrolls for a varying number of employees, and so on. The user specifies a particular case of the class of problems by means of a set of data, called the input, and the program delivers as its result another set of data, called the output.

One way of looking at this flexibility is to say that the input is a sequence of instructions written in a certain language, and the function of the program is to follow these instructions.

From this point of view, an editing program can execute other programs written in an editing language consisting of instructions such as search, delete, and insert textstring. And an Algol compiler can execute programs written in the Algol 60 language. The computer itself can be viewed as a physical implementation of a program called the instruction execution cycle. This program can carry out other programs written in a so-called machine language.

If we adopt the view that a computer is a device able to follow and carry out descriptions of processes written in a formal language, then we realize that each of these descriptions (or programs) in turn makes the original computer appear to be another computer which interprets a different language. In other words, an editing program makes the computer behave like an editing machine, and an Algol compiler turns it into an Algol 60 machine. Using slightly different words, we can say that a program executed on a physical machine makes that machine behave like a virtual machine which can interpret a different programming language. And this language is certainly more attractive for its purpose than the original machine language; otherwise, there would be no reason to write the program in the first place!

From these considerations it is hard to avoid the conclusion that operating systems must be regarded merely as large application programs. Their purpose is to manage resource sharing, and they are based on general programming methods. The proper aim of education is to identify these methods. But before we do that, I will briefly describe the technological development of operating systems. This will give you a more concrete idea of what typical operating systems do and what they have in common.

1.2. TECHNOLOGICAL BACKGROUND

1.2.1. Computer and Job Profiles

We now go back to the middle of the 1950's to trace the influence of the technological development of computers on the structure of operating systems.

When many users share a computer installation, queues of computa6 tions submitted for execution are normally formed, and a decision has to be made about the order in which they should be executed to obtain acceptable overall service. This decision rule is called a scheduling algorithm.

A computation requested by a user is called a job; it can involve the execution of several programs in succession, such as editing followed by compilation and execution of a program written in a high-level language. A job can also require simultaneous execution of several programs cooperating on the same task. One program may, for example, control the printing of data, while another program computes more output.

In the following, I justify the need for automatic scheduling of jobs by quite elementary considerations about a computer installation with the following characteristics:

 instruction execution time  2/~sec
 internal store              32 K words
 card reader                 1,000 cards/min
 line printer                1,000 cards/min
 magnetic tape stations      80,000 char/sec

 (1 ~ = 10-6, and 1 K = 1024).


A number of people have described the typical job profile for this type of environment (Rosin, 1965; Walter, 1967). We will assume that the average job consists of a compilation and execution of a program written in a high-level language. The source text read from cards and listed on a printer, is the major part of the input/output. More precisely, the average job will be characterized by the following figures:

 input time (300 cards)    0.3 min
 output time (500 lines)   0.5 min
 execution time            1 min


For the moment we will assume that magnetic tape is the only form of backing store available. This has a profound influence on the possible forms of scheduling. We also impose the technological restriction on the computer that its mode of operation be strictly sequential. This means that: (1) it can Sec. 1.2. TECHNOLOGICAL BACKGROUND 7 only execute one program at a time; and (2) after the start of an input/output operation, program execution stops until the transfer of data has been completed.

The simplest scheduling rule is the open shop where users each sign up for a period of, say, 15 min and operate the machine themselves. For the individual user this is an ideal form of service: it enables him to correct minor programming errors on the spot and experiment with programs during their execution. Unfortunately, such a system leads to prohibitive costs of idle machinery: for an average job, the central processor will only be working for one out of every 15 min; the rest of the time will be spent waiting for the operator. The situation can be characterized by two simple measures of average performance:

 processor utilization = execution time/total time
 throughput = number of jobs executed per time unit


Idle processor time caused by manual intervention can be greatly reduced by even the most primitive form of automatic scheduling. Figure 1.1 illustrates an installation in which users no longer can interact with programs during execution. They submit their jobs to an operator who stacks them in the card reader in their order of arrival. From the card reader, jobs are input directly to the computer, listed on the printer, and executed one by one. This scheduling is done by an operating system which resides permanently in the internal store.

Under this form of scheduling an average job occupies the computer for 1.8 min (the sum of input/output and execution times). This means that processor utilization has been improved to 55 percent with a corresponding throughput of 33 jobs per hour.

But even this simple form of automatic scheduling creates new problems: How do we protect the operating system against erroneous user programs? How can we force user programs to return control to the operating system when they are finished, or if they fail to terminate after a period of time defined by the operating system? Early operating systems offered no satisfactory solutions to these problems and were frequently brought down by their jobs. We will ignore this problem at the moment and return to it in the chapters on processor management and resource protection.

This argument in favor of automatic scheduling has ignored the processor time that is lost while the operator handles the peripheral devices: inserting paper in the printer, mounting tapes for larger jobs, and so forth. The argument has also ignored processor time that is wasted when the operator makes a mistake. But these factors are ignored throughout the chain of arguments and do not affect the trend towards better utilization of the processor.

The main weakness is that the argument did not include an evaluation of the amount of processor time used by the new component--the operating system. The reason for this omission is that an operating system carries out certain indispensable functions (input/output, scheduling, and accounting) which previously had to be done elsewhere in the installation by operators and users. The relevant factor here--the amount of processor time lost by an inefficient implementation of the operating system-- unfortunately cannot be measured. But in any case, the figures given in the following are not my estimates, but measurements of the actual performance of some recent operating systems.

The bottleneck in the previous simple system is the slow input/output devices; they keep the central processor waiting 45 per cent of the time during an average job execution. So the next step is to use the fast tape stations to implement a batch processing system as shown in Fig. 1.2. First, a number of jobs are collected from users by an operator and copied from cards to magnetic tape on a small, cheap computer. This tape is carried by the operator to the main computer, which executes the batch of jobs one by one, delivering their output to another tape. Finally, this output tape is carried to the small computer and listed on the printer. Notice that although jobs are executed in their order of arrival inside a batch, the printed output of the first job is not available until the entire batch has been executed.

During the execution of a batch on the main computer, the operator uses the small computer to print the output of an earlier batch and input a new batch on tape. In this way the main computer, as well as the card reader and printer, is kept busy all the time. Input/output delays on the main computer are negligible in this system, but another source of idle time has appeared: the mounting and dismounting of tapes. This can only be reduced by batching many jobs together on a single tape. But in doing so we also increase the waiting time of users for the results of their jobs. This dilemma between idle processor time and user response time can be expressed by the following relation:

 processor utilization = (batch execution time) / batch response time

 where
 	batch response time = batch mounting time + batch execution time


 batch response time = batch mounting time / 1 - processor utilization


 Delivery time of 50 jobs        30 min
 Conversion of cards to tape     15 min
 Mounting of tapes               5 min
 Batch execution                 50 min
 Conversion of tape to printer   25 min
 Manual separation of output     15 min
 Total batch cycle               140 min


1.2.3. Spooling Systems

It is illuminating to review the technological restrictions that dictated the previous development towards batch processing. The first one was the strict sequential nature of the computer which made it necessary to prevent conversational interaction with running programs; the second limitation was the sequential nature of the backing store (magnetic tapes) which forced us to schedule large batches of jobs strictly in the order in which they were input to the system.

The sequential restrictions on scheduling were made much less severe (but were by no means removed) by technological developments in the early 1960's. The most important improvement was the design of autonomous peripheral devices which can carry out input/output operations independently while the central processor continues to execute programs.

The problem of synchronizing the central processor and the peripheral devices after the completion of input/output operations was solved by the interrupt concept. An interrupt is a timing signal set by a peripheral device in a register connected to a central processor. It is examined by the central processor after the execution of each instruction. When an interrupt occurs, the central processor suspends the execution of its current program and starts another program--the operating system. When the operating system has responded properly to the device signal, it can either resume the execution of the interrupted program or start a more urgent program (for example, the one that was waiting for the input/output).

This technique made concurrent operation of a central processor and its peripheral devices possible. The programming technique used to control concurrent operation is called multiprogramming.

It was soon realized that the same technique could be used to simulate concurrent execution of several user programs on a single processor. Each program is allowed to execute for a certain period of time, say of the order of 0.1-1 sec. At the end of this interval a timing device interrupts the program and starts the operating system. This in turn selects another program, which now runs until a timing interrupt makes the system switch to a third program, and so forth.

This form of scheduling, in which a single resource (the central processor) is shared by several users, one at a time in rapid succession, is called multiplexing. Further improvements are made possible by enabling a program to ask the operating system to switch to other programs while it waits for input/output.

The possibility of more than one program being in a state of execution at one time has considerable influence on the organization of storage. It is no longer possible to predict in which part of the internal store a program will be placed for execution. So there is no fixed correspondence at compile time between the names used in a program to refer to data and the addresses of their store locations during execution. This problem of program relocation was first solved by means of a loading program, which examined user programs before execution and modified addresses used in them to correspond to the store locations actually used.

Later, program relocation was included in the logic of the central processor: a base register was used to modify instruction addresses automatically during execution by the start address of the storage area assigned to a user. Part of the protection problem was solved by extending this scheme with a limit register defining the size of the address space available to a user; any attempt to refer to data or programs outside this space would be trapped by the central processor and cause the operating system to be activated.

The protection offered by base and limit registers was, of course, illusory as long as user programs could modify these registers. The recognition of this flaw led to the design of central processors with two states of execution: a privileged state, in which there are no restrictions on the operations executed; and a user state, in which the execution of operations controlling interruption, input/output, and store allocation is forbidden and will be trapped if attempted. A transition to the privileged state is caused by interrupts from peripherals and by protection violations inside user programs. A transition to the user state is caused by execution of a privileged operation.

It is now recognized that it is desirable to be able to distinguish in a more flexible manner between many levels of protection (and not just two). This early protection system is safe, but it assigns more responsibility to the operating system than necessary. The operating system must, for example, contain code which can start input/output on every type of device because no other program is allowed to do that. But actually, all that is needed in this case is a mechanism which ensures that a job only operate devices assigned to it; whether a job handles its own devices correctly or not is irrelevant to the operating system. So a centralized protection scheme tends to increase the complexity of an operating system and make it a bottleneck at run time. Nevertheless, this early protection scheme must be recognized as an invaluable improvement: clearly, the more responsibility management delegates to an operating system, the less they can tolerate that it breaks down.

Another major innovation of this period was the construction of large backing stores, disks and drums, which permit fast, direct access to data and programs. This, in combination with multiprogramming, makes it possible to build operating systems which handle a continuous stream of input, computation, and output on a single computer. Figure 1.3 shows the organization of such a spooling system. The central processor is multiplexed between four programs: one controls input of cards to a queue on the backing store; another selects user jobs from this input queue and starts their execution one at a time; and a third one controls printing of output from the backing store. These three programs form the operating system. The fourth program held in the internal store is the current user program which reads its data from the input queue and writes its results in an output queue on the backing store.

The point of using the backing store as a buffer is that the input of a job can be fed into the machine in advance of its execution; and its output can be printed during the execution of later jobs. This eliminates the manual overhead of tape mounting. At the same time, direct access to the backing store makes it possible to schedule jobs in order of priority rather than in order of arrival. The spooling technique was pioneered on the Atlas computer at Manchester University (Kilburn, 1961).

A very successful operating system with input/output spooling, called Exec H, was designed by Computer Sciences Corporation (Lynch, 1967 and 1971). It controlled a Univac 1107 computer with an instruction execution time of 4 psec. The backing store consisted of two or more fast drums, each capable of transferring 10,000 characters during a single revolution of 33 msec. The system typically processed 800 jobs per day, each job requiring an average of 1.2 min. It was operated by the users themselves: To run a job, a user simply placed his cards in a reader and pushed a button. As a rule, the system could serve the users faster than they could load cards. So a user could immediately remove his cards from the reader and proceed to a printer where his output would appear shortly.

Less than 5 per cent of the jobs required magnetic tapes. The users who needed tapes had to mount them in advance of program execution.

Fast response to student jobs was achieved by using the scheduling algorithm shortest job next. Priorities were based on estimates of execution time supplied by users, but jobs that exceeded their estimated time limits were terminated by force.

Response times were so short that the user could observe an error, repunch a few cards, and resubmit his job immediately. System performance was measured in terms of the circulation time of jobs. This was defined as the sum of the response time of a job after its submission and the time required by the user to interpret the results, correct the cards, and resubmit the job; or, to put it more directly, the circulation time was the interval between two successive arrivals of the same job for execution.

About a third of all jobs had a circulation time of less than 5 min, and 90 per cent of all jobs were recirculated ones that had already been run one or more times the same day. This is a remarkable achievement compared to the earlier batch-processing system in which small jobs took a few hours to complete! At the same time, the processor utilization in the Exec H system was as high as 90 per cent.

The Exec H system has demonstrated that many users do not need a direct, conversational interaction with programs during execution. Users will often be quite satisfied with a non-interactive system which offers them informal access, fast response, and minimal cost.

Non-interactive scheduling of small jobs with fast response is particularly valuable for program testing. Program tests are usually short in duration: After a few seconds the output becomes meaningless due to a programming error. The main thing for the programmer is to get the initial output as soon as possible and to be able to run another test after correcting the errors shown by the previous test.

There are, however, also cases in which the possibility of interacting with running programs is highly desirable. In the following section, I describe operating systems which permit this.

1.2.4. Interactive Systems

To make direct conversation with running programs tolerable to human beings, the computer must respond to requests within a few seconds. As an experiment, try to ask a friend a series of simple questions and tell him to wait ten seconds before answering each of them; I am sure you will agree that this form of communication is not well-suited to the human temperament.

A computer can only respond to many users in a few seconds when the processing time of each request is very small. So the use of multiprogramming for conversation is basically a means of giving fast response to trivial requests; for example, in the editing of programs, in ticket reservation systems, in teaching programs, and so forth. These are all situations in which the pace is limited by human thinking. They involve very moderate amounts of input/output data which can be handled by low-speed terminals such as typewriters or displays.

In interactive systems in which the processor time per request is only a few hundred milliseconds, scheduling cannot be based on reliable user estimates of service time. This uncertainty forces the scheduler to allocate processor time in small slices. The simplest rule is round-robin scheduling: each job in turn is given a fixed amount of processor time called a time slice; if a job is not completed at the end of its time slice, it is interrupted and returned to the end of a queue to walt for another time slice. New jobs are placed at the end of the queue. This policy guarantees fast response to user requests that can be processed within a single time slice.

Conversational access in this sense was first proposed by Strachey (1959). The creative advantages of a closer interaction between man and machine were pointed out a few years later by Licklider and Clark (1962). The earliest operational systems were the CTSS system developed at Massachusetts Institute of Technology and the SDC Q-32 system built by the System Development Corporation. They are described in excellent papers by Corbato (1962) and Schwartz {1964 and 1967).

Figure 1.4 illustrates the SDC Q-32 system in a simplified form, ignoring certain details. An internal store of 65 K words is divided between a resident operating system and a single active user job; the rest of the jobs are kept on a drum with a capacity of 400 K words.

The average time slice is about 40 msec. At the end of this interval, the active job is transferred to the drum and another job is loaded into the internal store. This exchange of jobs between two levels of storage is called swapping. It takes roughly another 40 msec. During the swapping, the central processor is idle so it is never utilized more than 50 per cent of the time.

During the daytime the system is normally accessed simultaneously by about 25 user terminals. So a user can expect response to a simple request (requiring a single time slice only) in 25*80 msec = 2 sec.

A small computer controls terminal input/output and ensures that users can continue typing requests and receiving replies while their jobs are waiting for more time. A disk of 4000 K words with an average access time of 225 msec is used for semi-permanent storage of data files and programs.

The users communicate with the operating system in a simple job control language with the following instructions:

 LOGIN: The user identifies himself and begins using the system.
 LOAD: The user requests the transfer of a program from disk to
 drum.
 START: The user starts the execution of a loaded program or
 resumes the execution of a stopped program.
 STOP: The user stops the execution of a program temporarily.
 DIAL: The user communicates with other users or with system
 operators.
 LOGOUT: The user terminates his use of the system.


In the SDC Q-32 system with an average of 25 active users, each user is slowed down by a factor of 50. Consequently, a one-minute job takes about 50 min to complete compared to the few minutes required in the Exec H system. So interactive scheduling only makes sense for trivial requests; it is not a realistic method for computational jobs that run for minutes and hours.

Later and more ambitious projects are the MULTICS system (Corbato, 1965) also developed at MIT, and the IBM system TSS-360 (Alexander, 1968). In these systems, the problem of store multiplexing among several users is solved by a more refined method: Programs and data are transferred between two levels of storage in smaller units, called pages, when they are actually needed during the execution of jobs. The argument is that this is less wasteful in terms of processor time than the crude method of swapping entire programs. But experience has shown that this argument is not always valid because the overhead of starting and completing transfers increases when it is done in smaller portions. We will look at this problem in more detail in the chapter on store management. The paging concept was originally invented for the Atlas computer (Kilburn, 1962).

Another significant contribution of these systems is the use of large disks for semi-permanent storage of data and programs. A major problem in such a filing system is to ensure the integrity of data in spite of occasional hardware failures and protect them against unauthorized usage. The integrity problem can be solved by periodic copying of data from disk to magnetic tape. These tapes enable an installation to restore data on the disk after a hardware failure. This is a more complicated example of the design goal mentioned in Section 1.1.2: An operating system should try to make the virtual machine appear more reliable than the real one.

The protection problem can be solved by a password scheme which enables users to identify themselves and by maintaining as part of the filing system a directory describing the authority of users (Fraser, 1971). Interactive systems can also be designed for real-time control of industrial processes. The central problem in a real-time environment is that the computer must be able to receive data as fast as they arrive; otherwise, they will be lost. (In that sense, a conversational system also works under real-time constraints: It must receive input as fast as users type it.) Usually, a process control system consists of several programs which are executed simultaneously. There may, for example, be a program which is started every minute to measure various temperatures, pressures, and flows and compare these against preset alarm limits. Each time an alarm condition is detected, another program is started to report it to an operator, and while this is being done, the scan for further alarms continues. Still other programs may at the same time accumulate measurements on the production and consumption of materials and energy. And every few hours these data are probably printed by yet another program as a report to plant management.

This concludes the overview of the technological background of shared computer installations. I have tried through a series of simple arguments to illustrate the influence of technological constraints on the service offered by operating systems. Perhaps the most valid conclusion is this: In spite of the ability of present computer installations to perform some operations simultaneously, they remain basically sequential in nature; a central processor can only execute one operation at a time, and a drum or disk can only transfer one block of data at a time. There are computers and backing stores which can car~ out more than one operation at a time, but never to the extent where the realistic designer of operating systems can afford to forget completely about sequential resource constraints.

1.3. THE SIMILARITIES OF OPERATING SYSTEMS

The previous discussion may have left the impression that there are basic differences between batch processing, spooling, and interactive systems. This is certainly true as long as we are interested mainly in the relation between the user service and the underlying technology. But to gain a deeper insight into the nature of operating systems, we must look for their similarities before we stress their differences.

To mention one example: All shared computer installations must handle concurrent activities at some level. Even if a system only schedules one job at a time, users can still make their requests simultaneously. This is a real-time situation in which data (requests) must be received when they arrive. The problem can, of course, be solved by the users themselves (by forming a waiting line) and by the operators (by writing down requests on paper); but the observation is important since our goal is to handle the problems of sharing automatically.

It is also instructive to compare the batch-processing and spooling systems. Both achieve high efficiency by means of a small number of concurrent activities: In the batch processing system, independent processors work together; in the spooling system, a single processor switches among independent programs. Furthermore, both systems use backing storage (tape and drum) as a buffer to compensate for speed variations of the producers and consumers of data.

As another example, consider real-time systems for process control and conversational programming. In these systems, concurrently executed programs must be able to exchange data to cooperate on common tasks. But again, this problem exists in all shared computer installations: In a spooling system, user computations exchange data with concurrent input/output processes; and in a batch processing system, another set of concurrent processes exchanges data by means of tapes mounted by operators.

As you see, all operating systems face a common set of problems. To recognize these, we must reject the established classification of operating systems (into batch processing, spooling, and interactive systems) which stresses the dissimilarities of various forms of technology and user service. This does not mean that the problems of adjusting an operating system to the constraints of a particular environment should be ignored. But the designer will solve them much more easily when he fully understands the principles common to all operating systems.

1.4. DESIGN OBJECTIVES

The key to success in programming is to have a realistic, clearly-defined goal and use the simplest possible methods to achieve it. Several operating systems have failed because their designers started with very vague or overambitious goals. In the following discussion, I will describe two quite opposite views on the overall objectives of operating systems.

1.4.1. Special-purpose Systems

The operating systems described so far have one thing in common: Each of them tries to use the available resources in the most simple and efficient manner to give a restricted, but useful form of computational service.

The Exec H spooling system, for example, strikes a very careful balance between the requirements of fast response and efficient utilization. The overhead of processor and store multiplexing is kept low by executing jobs one at a time. But with only one job running, processor time is lost when a job waits for input/output. So to reduce input/output delays, data are buffered on a fast drum. But since a drum has a small capacity, it becomes essential to keep the volume of buffered data small. This again depends on the achievement of short response time for the following reason: the faster the jobs are completed, the less time they occupy space within the system.

The keys to the success of the Exec H are that the designers: (1) were aware of the sequential nature of the processor and the drum, and deliberately kept the degree of multiprogramming low; and (2) took advantage of their knowledge of the expected workload--a large number of small programs executed without conversational interaction. In short, the Exec H is a simple, very efficient system that serves a special purpose.

The SDC Q-32 serves a different special purpose: conversational programming. It sacrifices 20 per cent of its processor time to give response within a few seconds to 25 simultaneous users; its operating system occupies only 16 K words of the internal store. This too is a simple, successful system.

The two systems do not compete with each other. Each gives the users a special service in a very efficient manner. But the spooling system is useless for conversation, and so is the interactive system for serious computation.

On the other hand, neither system would be practical in an environment where many large programs run for hours each and where operators mount a thousand tapes daffy. This may be the situation in a large atomic research center where physicists collect and process large volumes of experimental data. An efficient solution to this problem requires yet another operating system.

The design approach described here has been called design according to performance specifications. Its success strongly suggests that efficient sharing of a large installation requires a range of operating systems, each of which provides a special service in the most efficient and simple manner. Such an installation might, for example, use three different operating systems to offer:

 (1) conversational editing and preparation of jobs;
 (2) non-interactive scheduling of small jobs with fast response; and
 (3) non-interactive scheduling of large jobs.


1.4.2. General-purpose Systems

An alternative method is to make a single operating system which offers a variety of services on a whole range of computers. This approach has often been taken by computer manufacturers.

The 0S/360 for the IBM 360 computer family was based on this philosophy. Mealy (1966) described it as follows:

"Because the basic structure of 0S/360 is equally applicable to batchedojob and real-time applications, it may be viewed as one of the first instances of a second-generation operating system. The new objective of such a system is to accommodate an environment of diverse applications and operating modes. Although not to be discounted in importance, various other objectives are not new--they have been recognized to some degree in prior systems. Foremost among these secondary objectives are:

    Increased throughput
 [] Lowered response time
 [] Increased programmer productivity
 [] Adaptability (of programs to changing resources)
 [] Expandability


Notice that performance (throughput and response) is considered to be of secondary importance to functional scope.

An operating system that tries to be all things to all men naturally becomes very large. 0S/360 is more than an operating system--it is a library of compilers, utility programs, and resource management programs. It contains several million instructions. Nash gave the following figures for the resource management components of 0S/360 in 1966:

 Data management   58.6 K statements
 Scheduler         45.0
 Supervisor        26.0
 Utilities         53.0
 Linkage editor    12.3
 Testran           20.4
 System generator  4.4
                   219.7 K
 (Nato report, 1968, page 67).


This is actually a very low percentage of errors considering the size of the system.

This method has been called design according to functional specifications. The results have been generally disappointing, and the reason is simply this: Resource sharing is the main purpose of an operating system, and resources are shared most efficiently when the designer takes full advantage of his knowledge of the special characteristics of the resources and the jobs using them. This advantage is immediately denied him by requiring that an operating system must work in a much more general case.

This concludes the overview of operating systems. In the following chapters, operating systems are studied at a detailed level in an attempt to build a sound theoretical understanding of the general principles of multiprogramming and resource sharing.

1.5. LITERATURE

This chapter owes much to a survey by Rosin (1969) of the technological development of operating systems.

With the background presented, you will easily follow the arguments in the excellent papers on the early operating systems mentioned: Atlas (Kilburn, 1961; Morris, 1967), Exec II (Lynch, 1967 and 1971), CTSS (Corbato, 1962), and SDC Q-32 (Schwartz, 1964 and 1967). I recommend that you study these papers to become more familiar with the purpose of operating systems before you proceed with the analysis of their fundamentals. The Atlas, Exec H, and SDC systems are of special interest because they were critically reevaluated after several years of actual use.

The paper by Fraser (1971) explains in some detail the practical problems of maintaining the integrity of data in a disk filing system in spite of occasional hardware malfunction and of protecting these data against unauthorized usage.

CORBATO, F. J., MERWIN.DAGGETT, M., and DALEY, R. C., "An experimental time-sharing system," Proc. AFIPS Fall Joint Computer Conf., pp. 335-44, May 1962.

FRASER, A. G., "The integrity of a disc based file system," International Seminar on Operating System Techniques, Belfast, Northern Ireland, Aug.-Sept. 1971.

KILBURN, T., HOWARTH, D. J., PAYNE, R. B., and SUMNER, F. H., "The Manchester University Atlas operating system. Part I: Internal organization," Computer Journal 4, 3, 222-25, Oct. 1961.

LYNCH, W. C. "Description of a high capacity fast turnaround university computing center," Proc. ACM National Meeting, pp. 273-88, Aug. 1967. LYNCH, W. C., "An operating system design for the computer utility environment," International Seminar on Operating System Techniques, Belfast, Northern Ireland, Aug.-Sept. 1971.

MORRIS, D., SUMNER, F. H., and WYLD, M. T., "An appraisal of the Atlas supervisor," Proc. ACM National Meeting, pp. 67.75, Aug. 1967. ROSIN, R. F., "Supervisory and monitor systems," Computing Surveys 1, 1, pp. 15-32, March 1969.

SCHWARTZ, J. L, COFFMAN, E. G., and WEISSMAN, C., "A general purpose time.sharing system," Proc. AFIPS Spring Joint Computer Conf., pp. 397-411, April 1964.

SCHWARTZ, J. I. and WEISSMAN, C., "The SDC timesharing system revisited," Proc. ACMNationalMeeting, pp. 263-71, Aug. 1967.

Глава 2 - SEQUENTIAL PROCESSES

2.1. INTRODUCTION

The starting point of a theory of operating systems must be a sequential process--a succession of events that occur one at a time. This is the way our machines work; this is the way we think. Present computers are built from a small number of large sequential components: store modules which can access one word at a time, arithmetic units which can perform one addition at a time, and peripherals which can transfer one data block at a time. Programs for these computers are written by human beings who master complexity by dividing their tasks into smaller parts which can be analyzed and solved one at a time.

This chapter is a summary of the basic concepts of sequential programming. I assume you already have an intuitive understanding of many of the problems from your own programming experience. We shall begin by discussing the role of abstraction and structure in problem solving.

2.2. ABSTRACTION AND STRUCTURE

Human beings can think precisely only of simple problems. In our efforts to understand complicated problems, we must concentrate at any moment on a small number of properties that we believe are essential for our present purpose and ignore all other aspects. Our partial descriptions of the world are called abstractions or models.

One form of abstraction is the use of names as abbreviations for more detailed explanations. This is the whole purpose of terminology. It enables us to say "operating system" instead of "a set of manual and automatic procedures that enable a group of people to share a computer installation efficiently."

In programming, we use names to refer to variables. This abstraction permits us to ignore their actual values. Names are also used to refer to programs and procedures. We can, for example, speak of "the editing program." And if we understand what editing is, then we can ignore, for the moment, how it is done in detail.

Once a problem is understood in terms of a limited number of aspects, we proceed to analyze each aspect separately in more detail. It is often necessary to repeat this process so that the original problem is viewed as a hierarchy of abstractions which are related as components within components at several levels of detail.

In the previous example, when we have defined what an editing program must do, we can proceed to construct it. In doing so, we will discover the need for more elementary editing procedures which can "search," "delete," and "insert" a textstring. And within these procedures, we will probably write other procedures operating on single characters. So we end up with several levels of procedures, one within the other. As long as our main interest is the properties of a component as a whole, it is considered a primitive component, but, when we proceed to observe smaller, related components inside a larger one, the latter is regarded as a structured component or system. When we wish to make a distinction between a given component and the rest of the world, we refer to the latter as the environment of that component.

The environment makes certain assumptions about the properties of a component and vice versa: The editing program assumes that its input consists of a text and some editing commands, and the user expects the program to perform editing as defined in the manual. These assumptions are called the connections between the component and its environment. The set of connections between components at a given level of detail defines the structure of the system at that level. The connections between the editing program and its users are defined in the program manual. Inside the editing program, the connections between the components "search," "delete," and "insert" are defined by what these procedures assume about the properties and location of a textstring and by what operations they perform on it.

Abstraction and recognition of structure are used in all intellectual disciplines to present knowledge in forms that are easily understood and remembered. Our concern is the systematic use of abstraction in the design of operating systems. We will try to identify problems which occur in all shared computer installations and define a set of useful components and rules for connecting them into systems.

In the design of large computer programs, the following difficulties must be taken for granted: (1) improved understanding of the problems will change our goals in time; (2) technological innovations will eventually change our tools; and (3) our intellectual limitations will often cause us to make errors in the construction of large systems. These difficulties imply that large systems will be modified during their entire existence by designers and users, and it is essential that we build such systems with this in mind. If it is difficult to understand a large system, it is also difficult to predict the consequences of modifying it. So reliability is intimately related to the simplicity of structure at all levels.

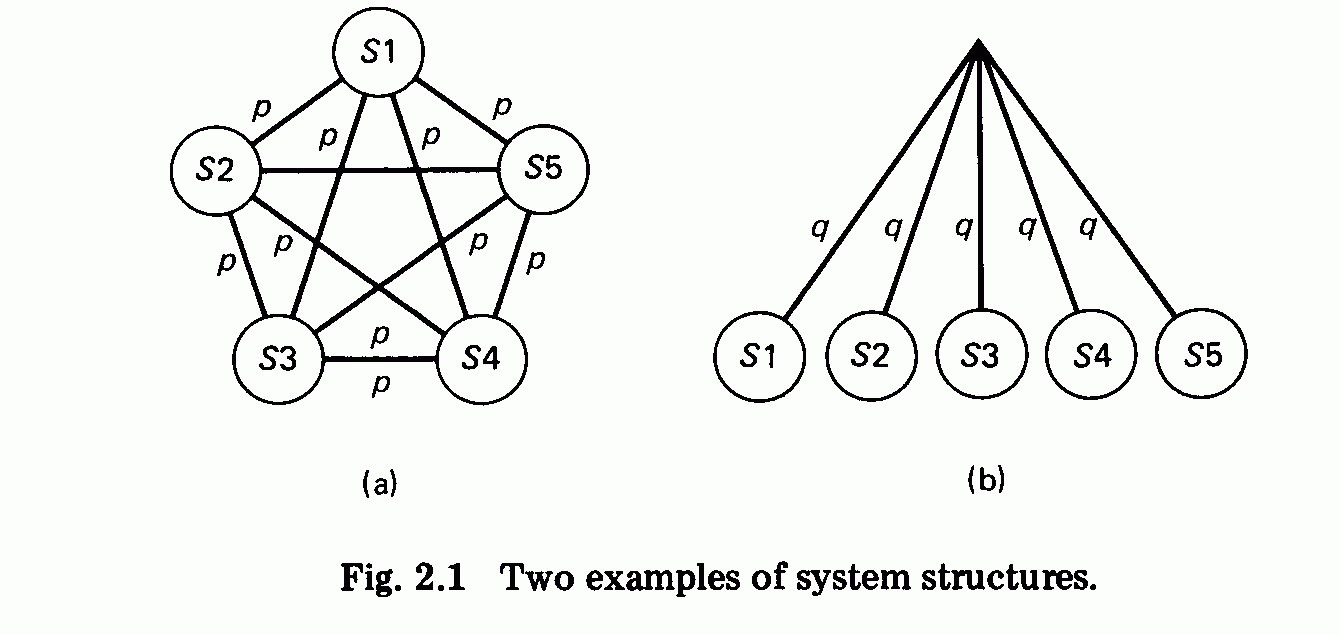

Figure 2.1(a) shows a complicated system S, consisting of n components SI, $2 . . . . , Sn. In this system, each component depends directly on the behavior of all other components. Suppose an average of p simple steps of reasoning or testing are required to understand the relationship between one component and another and to verify that they are properly connected. Then the connection of a single component to its environment can be verified in (n-1)p steps, and the complete system requires n(n - 1)p steps.

This can be compared with the system shown in Fig. 2.1(b): There, the connections between the n components are defined by a common set of constraints chosen so that the number of steps q required to verify whether

a component satisfies them is independent of the number of components n. The proof or test effort is now q steps per component and nq steps for the whole system.

The argument is, of course, extreme, but it does drive home the following point: If the intellectual effort required to understand and test a system increases more than linearly with the size of the system, we shall never be able to build reliable systems beyond a certain complexity. Our only hope is to restrict ourselves to simple structures for which the effort of verification is proportional to the number of components.

The importance of precise documentation of system structure can hardly be overemphasized. Quite often, a group of designers intend to adopt a simple structure, but they fail to state precisely what the assumptions are at each level of programming, and instead rely on informal, spoken agreements. Inevitably, the result is that each member of the group adds complexity to the structure by making unnecessary or erroneous assumptions about the behavior of components designed by his colleagues. The importance of making assumptions explicit is especially felt when an initial version of a system must be modified; perhaps by a different group of people.

2.3. COMPUTATIONS

In Chapter 1 the word computation was used intuitively to refer to program execution. In the following, this concept and its components data and operations are defined explicitly.

2.3.1. Data and Operations

The exchange of facts or ideas among human beings by speech is based on mutual agreement on the meaning of certain sounds and combinations of sounds. Other conventions enable us to express the same ideas by means of text and pictures, holes in punched cards, polarity of magnetized media, and modulated electromagnetic waves. In short, we communicate by means of physical phenomena chosen by us to represent certain aspects of our world. These physical representations of our abstractions are called data, and the meanings we assign to them are called their information. Data are used to transmit information between human beings, to store information for future use, and to derive new information by manipulating the data according to certain rules. Our most important tool for the manipulation of data is the digital computer.

A datum stored inside a computer can only assume a finite set of values called its type. Primitive types are defined by enumeration of their values, for example:

 	type boolean = (false, true)



 	type integer = - 8388608..8388607


The rules of data manipulation are called operations. An operation maps a finite set of data, called its input, into a finite set of data, called its output. Once initiated, an operation is executed to completion within a finite time. These assumptions imply that the output of an operation is a time-independent function of its input, or, to put it differently: An operation always delivers the same output values when it is applied to a given set of input values.

An operation can be defined by enumeration of its output values for all possible combinations of its input values. This set of values must be finite since an operation only involves a finite set of data with finite ranges. But in practice, enumeration is only useful for extremely simple operations such as the addition of two decimal digits. As soon as we extend this method of definition to the addition of two decimal numbers of, say, 10 digits each, it requires enumeration of 10 2 0 triples (x, y, x + y)! A more realistic method is to define an operation by a computational rule involving a finite sequence of simpler operations. This is precisely the way we define the addition of numbers. But like other abstractions, computational rules are useful intellectual tools only as long as they remain simple.

The most powerful method of defining an operation is by assertions about the type of its variables and the relationships between their values before and after the execution of the operation. These relationships are expressed by statements of the following kind: If the assertion P is true before initiation of the operation Q, then the assertion R will be true on its completion. I will use the notation

 	"P" Q "R"


As an example, the effect of an operation sort which orders the n elements of an integer array A in a non-decreasing sequence can be defined as follows:

 	"A: array 1..n of integer"
 	sort(A);
 	"for all i, j: 1..n (i ~j implies A(i) ~ A(j))"


The whole purpose of abstraction is abbreviation. You can often help the reader of your programs much more by a short, informal statement that appeals to a common background of more rigorous definition. If your reader knows what a Fibonacci number is, then why write

 	"F: array 0..n of integer & j: O. .n &
 	for all i: 0..j (F(i) = if i < 2 then i else F(i - 2) + F(i - 1))"


 	"F(0) to F(j) are the first j + 1 Fibonaeci numbers"


2.3.2. Processes

Data and operations are the primitive components of computations. More precisely, a computation is a finite set of operations applied to a finite set of data in an attempt to solve a problem. If a computation solves

the given problem, it is also called an algorithm. But it is possible that a computation is meaningless in the sense that it does not solve the problem it was intended to solve.

The operations of a computation must be carried out in a certain order of precedence to ensure that the results of some operations can be used by others. The simplest possible precedence rule is the execution of operations in strict sequential order, one at a time. This type of computation is called a sequential process. It consists of a set of operations which are totally ordered in time.

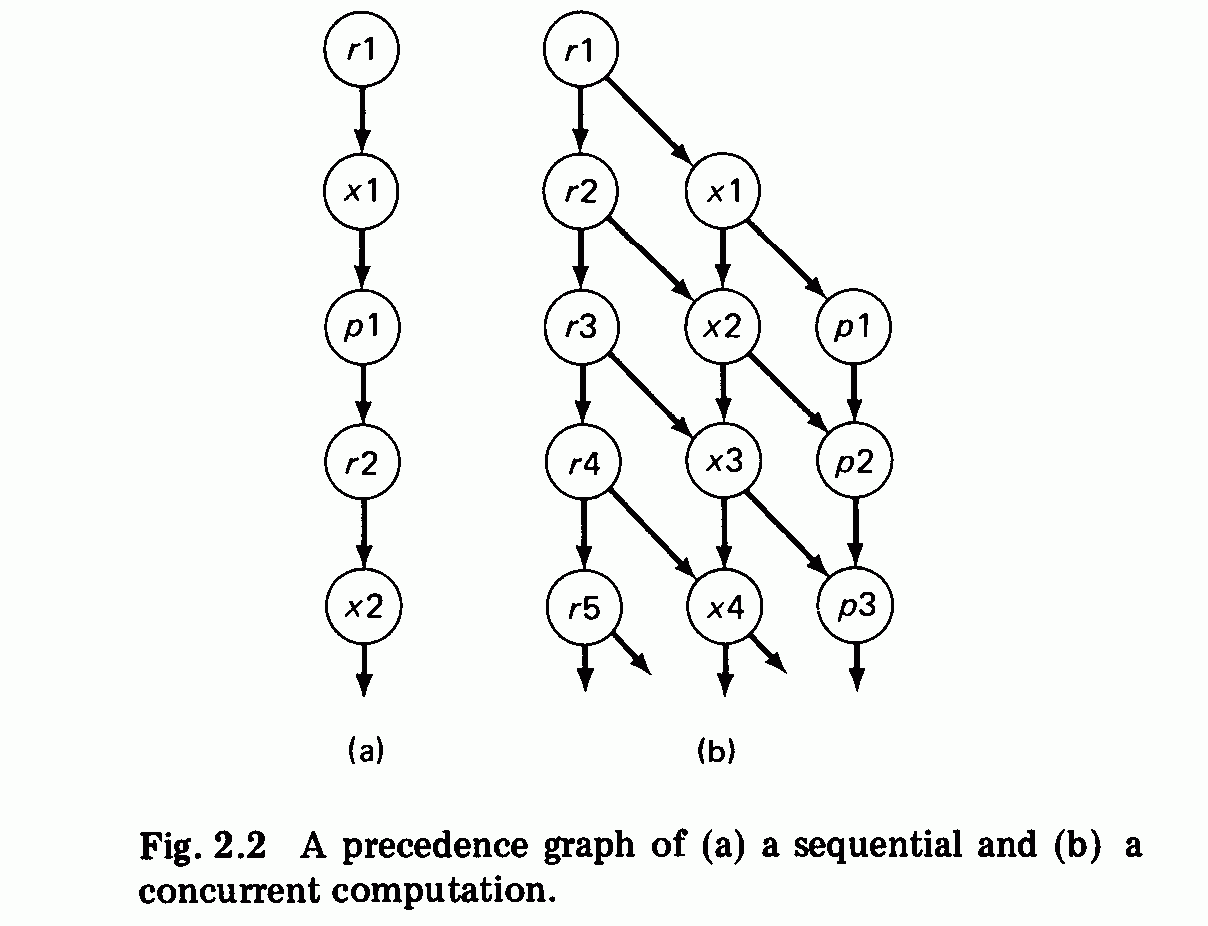

Figure 2.2(a) shows a precedence graph of the process performed by an operating system that schedules user computations one at a time. Each node represents an instance of one of the following operations: r (read user request), x (execute user computation), and p (print user results). The directed branches represent precedence of operations. In this case:

 rl precedes xl,
 xl precedes pl,
 pl precedes r2,
 r2 precedes x2,


 	rl precedes xl and r2,
 	xl precedes pl and x2,
 	pl precedes p2,
 	r2 precedes x2 and r3,


 r2 and xl,
 r3 and x2 and pl,


If you wish to design a spooling system, then you will probably partition the computation in Fig. 2.2(b) into three sequential processes of a cyclical nature each in control of a physical resource:

 	reader process:          r l ; r 2 ; r 3 ; . . .
 	scheduler process:       xl;x2;x3;. . .
 	printer process:         pl;p2;p3;. . .


On the other hand, if you are a user, it makes more sense to recognize the following processes in Fig. 2.2(b):

 	job 1: r l ; x l ; p l ;
 	job 2: r2; x2; p2;
 	job 3: r3;x3;p3;


The abstractions chosen above illustrate a general principle: In a successful decomposition, the connections between components are much weaker than the connections inside components. It is the loose connections or infrequent interactions between the processes above which make it possible for us to study them separately and consider their interactions only at a few, well-defined points.

One of the recurrent themes of this book is process interaction. It is a direct consequence of the sharing of a computer. Processes can interact for various reasons: (1) because they exchange data, such as the reader, scheduler, and printer processes; (2) because they share physical resources, such as jobl, job2, job3, and so on; or (3) because interaction simplifies our understanding and verification of the correctness of a computation--this is a strong point in favor of sequential computations.

Concurrent computations permit better utilization of a computer installation because timing constraints among physical components are reduced to a minimum. But since the order of operations in time is not completely specified, the output of a concurrent computation may be a time-dependent function of its input unless special precautions are taken. This makes it impossible to reproduce erroneous computations in order to locate and correct observed errors. In contrast, the output of a sequential process can always be reproduced when its input is known. This property of sequential processes along with their extreme simplicity makes them important components for the construction of concurrent computations.

The main obstacles to the utilization of concurrency in computer installations are economy and human imagination. Sequential processes can be carried out cheaply by repeated use of simple equipment; concurrent computations require duplicated equipment.

Human beings find it very difficult to comprehend the combined effect of activities which evolve simultaneously with independent speeds. Those who have studied the history of nations in school, one by one--American history, French history, and so on--recall how difficult it was to remember, in connection with a crucial time of transition in one country, what happened in other countries at the same time. The insight into our historical background can be greatly improved by presenting history as a sequence of stages and by discussing the situation in several countries at each stage--but then the student finds it equally difficult to remember the continuous history of a single nation !

It is hard to avoid the conclusion that we understand concurrent events by looking at sequential subsets of them. This would mean that, even though technological improvements may eventually make a high degree of concurrency possible in our computations, we shall still attempt to partition our problems conceptually into a moderate number of sequential activities which can be programmed separately and then connected loosely for concurrent execution.

In contrast, our understanding of a sequential process is independent of its actual speed of execution. All that matters is that operations are carried out one at a time with finite speed and that certain relations hold between the data before and after each operation.

2.3.3. Computers and Programs

The idea of defining complicated computations rigorously implies the use of a formal language to describe primitive data types and operations as well as combinations of them. A formal description of a computation is called a program, and the language in which it is expressed is called a programming language. Programs can be used to communicate algorithms among human beings, but, in general, we write programs to solve problems on computers. We will indeed define a computer installation as a physical system capable of carrying out computations by interpreting programs.

Figure 2.3 shows a model of a computer installation. It consists of a store and one or more processors. The store is a physical component in which data and programs can be retained for future use. It is divided into a finite set of primitive components called locations. Each location can store any one of a finite set of data values.

A processor is a physical component which can carry out a sequential process defined by a program. During its execution, a program is stored as a sequence of data called instructions. An instruction consists of four components defining an operation, its input and output, and a successor instruction. Data used to identify store locations are called addresses. The processors can work concurrently and share the common store. Some of the processors are called terminals or peripheral devices; they are dedicated to the transfer of data between the environment and the store. Other processors are called central processors; they operate mainly on stored data. For our purposes, the distinction between peripheral devices and central processors is not fundamental; it merely reflects various degrees of specialization.

The rest of this chapter is a discussion of the fundamental abstraction, sequential processes. It summarizes methods of structuring data and sequential programs, and serves as a presentation of the programming language used throughout the text, a subset of the language Pascal, created by Wirth. The algorithmic statements of Pascal are based on the principles and notation of Algol 60. But the data structures of Pascal are much more general than those of Algol 60.

Pascal permits hierarchal structuring of data and program, extensive error checking at compile time, and production of efficient machine code on present computers. It combines the clarity needed for teaching the subject with the efficiency required for designing operating systems. If you are familiar with Algol 60, you will find it quite natural to adopt Pascal as your programming tool.

The following is a brief and very informal description of a subset of Pascal with the emphasis on the language features that make it different from Algol 60. Although my summary of Pascal is sufficient for understanding the rest of the book, I recommend that you study the official Pascal report, which is written in clear, informal prose (Wirth, 1971a).

I have taken a few minor liberties with the Pascal notation. They are not mentioned explicitly because my subject is not rigorous language definition, but operating system principles.

2.4. DATA STRUCTURES

2.4.1. Primitive Data Types

Constants are denoted by numbers or identifiers. A definition of the form:

constal=cl, a2=c2, . . . , ak = ck;

introduces the identifiers al, a2 . . . . , ak as synonyms of the constants cl, c2, . .. , ck, for example:

const e = 2.718281828;

Variables are introduced by declarations of the form:

vat vl, v2 . . . . , vk: ;

which associates the identifiers vl, v2 . . . . . , vk with a data type.

A data type is the set of values which can be assumed by a variable. A type can be defined either directly in the declaration of a variable or separately in a type definition which associates an identifier T with the type:

 	type T =  ;
 	vat vl, v2, . . . , vk: T;


 	boolean
 	integer
 	real


Other primitive types can be defined by enumeration of a set of successive values:

(al, a2, . . . ,ak)

denoted by identifiers al, a2, . . . , ak, for example:

 	type name of month =
 	(January, February, March, April, May, June, July,
 	August, September, October, November, December);


cmin. . emax

where cmin and cmax are constants denoting the minimum and maximum values in the range, for example:

 	type number of day = 1..31;
 	vat payday: number of day;
 	war summer month: June..August;


The set of values which can be assumed by a variable v of a primitive type T can be generated by means of the standard functions:

rain(T) max(T) succ(v) pred(v)

in ascending order:

 	v:= rain(T);
 	while v -~ max(T) do v:= succ(v);


 	v: = max(T);
 	while v ? min(T) do v: = pred(v);


Structured types are defined in terms of primitive types or in terms of other structured types using the connection rules of arrays and records.

The type definition:

array D of R

defines a data structure consisting of a fixed number of components of type R. Each component of an array variable v is selected by an index expression E of type D:

 			v(E)
 		Examples:
 		type table = array 1..20 of integer;
 		vat A : table; i: 1. •20;
 		. . . A ( i ) . . .
 		vat length of month:
 		array name of month of number of day;
 		• . . length of month (February) . ..


 		record fl: T1; f2: T2;... ; fk: Tk end


 		v.fi
 		Example:
 		type date = record
 		day: number of day;
 		month: number of month;
 		year: O. .2000;
 		end
 		vat birthday: date;
 		• . . birthday, month...


I will occasionally do the same and postulate extensions to Pascal which help me to stress essential concepts and, for the moment, ignore trivial details.

As one example, I will assume that one can declare a variable s consisting of a sequence of components of type T: vat s: sequence of T

var s:sequence of T

Initially, the sequence is empty. The value of a variable t of type T can be appended to or removed from the sequence s by means of the standard procedures

put(t, s) get(t, s)

The components are removed in the order in which they are appended to the sequence. In other words, a sequence is a first-in, first-out store.

The boolean function

empty(s)

defines whether or not the sequence s is empty.

The implementation of sequences by means of arrays will be explained in Chapter 3. For a more detailed discussion of the representation of various data structures see Knuth (1969).

2.5. PROGRAM STRUCTURES

2.5.1. Primitive Statements

Operations and combinations of them are described by statements. The primitive statements are exit statements, assignment statements, and procedure statements.

The exit statement

exit L

is a restricted form of a go to statement. It causes a jump to the end of a compound statement labeled L:

labelLbegin . . . e x i t L ; . . , end

This use of jumps is an efficient way of leaving a compound statement in the exceptional cases when a solution to a problem is found earlier than expected, or when no solution exists. But in contrast to the unstructured go to statement, the exit statement simplifies the verification of program correctness.

Suppose an assertion P holds before a compound statement Q is executed. There are now two cases to consider: Either Q is executed to completion, in which case an assertion R is known to hold; or an exit is made from Q when an exceptional case S holds. So the effect of statement Q is the following:

"P" Q "R or S"

The assignment statement

V: = E

assigns the value of an expression E to a variable v. The expression must be of the same type as v. Expressions consist of operators and functions applied to constants, variables, and other expressions. The operators are:

 	arithmetic: + - * / mod
 	relational: = ~ < >
 	boolean: & or not


F(al, a2, . . . . ak)

causes the evaluation of a function F with the actual parameters al, a2, . . . , ak. The procedure statement

P(al, a2, . . . ,ak)

causes the execution of a procedure P with the actual parameters al,

a2, . . . , ak. The actual parameters of functions and procedures can be variables and expressions. Expressions used as parameters are evaluated before a function or procedure is executed.

Structured statements are formed by connecting primitive statements or other structured statements according to the following rules:

(1) Concatenation of statements S1, $2, . . . , Sn into a compound statement:

 	label L begin S1; $2; . . . ; Sn end
 	beginS1;S2; . . . ;Sn end


(2) Selection of one of a set of statements by means of a boolean expression B:

ifB then S1 else $2 if B then S

or by means of an expression E of a primitive type T:

type T = (cl, c2 . . . . , cn); . , • case E of cl: S1;c2: $2; . . . cn: Sn; end

If E = c] then statement S] is executed (See Fig. 2.5).

Repetition of a statement S while a boolean expression B remains true

while B do S

or repetition of a sequence of statements S1, $2, . . . , Sn until a boolean expression B becomes true:

repeat 81; $2; . . . ; Sn until B

(See Fig. 2.6).

Another possibility is to repeat a statement S with a succession of primitive values assigned to a control variable v:

for v:= Emin to Emax do S

 (4) Recursion of a procedure P which calls itself:
 	procedumP( . . . );
 	begin . . . P; . . . end


Notice that the analytical effort required to understand the effect of these structures is proportional to the number of component statements. For example, in the analysis of an if statement, we must first prove that a certain assertion R will be true after execution of statement S1, provided assertions B and P hold before $1 is initiated, and similarly for $2:

"B & P"S1 "R" "not B & P"S2 "R"

From this we infer that

"P" ifB then S1 else $2 "R"

The repetition statements are understood by mathematical induction. From

"B & P" S "P"

we infer that

"P" while B do S "not B & P"

The aim is to find an invariant P--an assertion which is true before the iteration is started and remains true after each execution of the statment S.

For records, the following structured statement can be used:

with v do S

It enables the statement S to refer to the components of a record variable v by their identifiers f l , f2, . . . , fk without qualifying them with the record identifier v, for example:

 	with birthday do
 	begin day:= 19; month:= April; year:= 1938 end


 	procedure P(pl; p2; . . . ; pk);
 	< local declarations >
 	beginS1;S2; . . . ;Snend

 	function F(pl;p2; . . . ;pk):  ;
 	< local declarations >
 	begin S1; $2; . . . ; Sn end


const vj: Tj var vj: Tj

The preceding specifier can be omitted for constant parameters.

A function F computes a value that must be of a primitive type. At least one of its statements $1, $2, . . . , Sn must assign a result value to the function identifier F

F:= E

where E is an expression of the result type.

The function statements must not assign values to actual parameters and non-local variables. This rule simplifies program verification as will be explained in Chapter 3.

The declarations of identifiers which are local to a procedure or function are written before the begin symbol of the statement part. They are written in the following order:

 	const
 	type
 	var



"This is a comment"

This concludes the presentation of the Pascal subset.

2.6. PROGRAM CONSTRUCTION

We design programs the same way we solve other complex problems: by step-wise analysis and refinement. In this section, I give an example of hierarchal program construction.

2.6.1. The Banker's Algorithm

The example chosen is a resource sharing problem first described and solved by Dijkstra (1965). Although the problem involves concurrent processes, it is used here as an example of sequential programming.

An operating system shares a set of resources among a number of concurrent processes. The resources are equivalent in the sense that when a process makes a request for one of them, it is irrelevant which one is chosen. Examples of equivalent resources are peripheral devices of the same type and store pages of equal size.

When a resource has been allocated to a process, it is occupied until the process releases it again. When concurrent processes share resources in this manner, there is a danger that they may end up in a deadlock, a state in which two or more processes are waiting indefinitely for an event that will never happen.

Suppose we have 5 units of a certain resource, and we are in a state where 2 units are allocated to a process P and 1 unit to another process Q. But both processes need two more units to run to completion. If we are lucky, one of them, say Q, will acquire the last two units, run to completion, and release all three of its units in time to satisfy further requests from P. But it is also possible that P and Q both will acquire one of the last two units and then (since there are no more) will decide to wait until another unit becomes available. Now they are deadlocked: P cannot continue until Q releases a unit; Q cannot continue until P releases a unit; and each of them expects the other to resolve the conflict.

The deadlock could have been prevented by allocating all units needed by P (or Q) at the same time rather than one by one. This policy would have forced P and Q to run at different times, and as we have seen in Chapter 1, this is often the most efficient way of using the resources. But for the moment, we will try to solve the problem without this restriction. Let me define the problem more precisely in Dijkstra's terminology: A banker wishes to share a fixed capital of florins among a fixed number of customers. Each customer specifies in advance his maximum need for florins. The banker will accept a customer if his need does not exceed the capital.

During a customer's transactions, he can only borrow or return florins one by one. It may sometimes be necessary for a customer to wait before he can borrow another florin, but the banker guarantees that the waiting time will always be finite. The current loan of a customer can never exceed his maximum need.

If the banker is able to satisfy the maximum need of a customer, then the customer guarantees that he will complete his transactions and repay his loan within a finite time. The current situation is safe if it is possible for the banker to enable all his present customers to complete their transactions within a finite time; otherwise, it is unsafe.

We wish to find an algorithm which can determine whether the banker's current situation is safe or unsafe. If the banker has such an algorithm, he can use it in a safe situation to decide whether a customer who wants to borrow another florin should be given one immediately or told to walt. The banker makes this decision by pretending to grant the florin and then observing whether this leads to a safe situation or not.

The situation of a customer is characterized by his current loan and his further claim where

claim = need - loan

The situation of the banker is characterized by his original capital and his current amount of cash where

cash = capital - sum of loans

The algorithm that determines whether the overall situation is safe or not is quite simple. Let me illustrate it by an example: Fig. 2.8 shows a situation in which three customers, P, Q, and R, share a capital of 10 florins. Their combined need is 20 florins. In the current situation, Fig. 2.8(a), customer Q has a loan of 2 florins and a claim of 1 florin; this is denoted 2 (1). For P and R the loans and claims are 4 (4) and 2 (7) respectively. So the available cash C at the moment is 10 - 4 - 2 - 2 = 2.

The algorithm examines the customers one by one, looking for one who has a claim not exceeding the cash. In Fig. 2.8(a), customer Q has a claim of 1. Since the cash is 2, customer Q will be able in this situation to complete his transactions and return his current loan of 2 florins to the banker.

After the departure of customer Q, the situation will be the one shown in Fig. 2.8(b). The algorithm now scans the remaining customers and compares their claims with the increased cash of 4 florins. It is now possible to satisfy customer P completely. This leads to the situation in Fig. 2.8(c) in which customer R can complete his transactions. So finally, in Fig. 2.8(d) the banker has regained his capital of 10 florins. Consequently, the original state Fig. 2.8(a) was safe.

It is possible to go from the safe state in Fig. 2.8(a) to an unsafe situation, such as the one in Fig. 2.9(a). Here, the banker has granted a request from customer R for another florin. In this new situation, customer Q can be satisfied. But this leads us to the situation in Fig. 2.9(b) in which we are stuck: neither P nor R can complete their transactions.

If the banker's algorithm finds that a situation is unsafe, this does not necessarily mean that a deadlock will occur--only that it might occur. But if the situation is safe, it is always possible to prevent a deadlock. Notice that the banker prevents deadlocks in the same way as we originally proposed: by serving the customers one at a time; but the banker only does so in situations where it is strictly necessary.

We will now program the banker's algorithm for the general case considered by Habermann (1969), in which the banker's capital consists of several currencies: florins, dollars, pounds, and so on.

2.6.2. A Hierarchal Solution

The first version of the banker's algorithm is trivial:

 	type S = ?
 	function safe(current state: S): boolean;


The first refinement (Algorithm 2.1) expresses in some detail what the

 		ALGORITHM 2. 1 The Banker's Algorithm
 		type S = ?
 		function safe(current state: S): boolean;
 		vat state: S;
 		begin
 		state:= current state;
 		complete transactions(state);
 		safe: = all transactions completed(state);
 		end


In the second refinement (Algorithm 2.2), the state is decomposed into: (1) an array defining the claim and loan of each customer and whether or not that customer's transactions have been completed; and (2) two components defining the capital and cash of the banker. The exact representation of currencies (type C) is still undefined.

The procedure complete transactions is now defined in some detail. It examines the transactions of one customer at a time: If they have not already been completed and completion is possible, the procedure simulates the return of the customer's loan to the banker. This continues until no more transactions can be completed.

 		ALGORITHM 2.2 The Banker's Algorithm (cont.)
 		type S = record
 		transactions: array B of
 		record
 		claim, loan: C;
 		completed: boolean;
 		end
 		capital, cash: C;
 		end
 		B = 1..number of customers;
 		C=?
 		procedure complete transactions(vat state: S);
 		vat customer: B; progress: boolean;
 		begin
 		with state do
 		repeat
 		progress:= false;
 		for every customer do
 		with transactions(customer) do
 		ff not completed then
 		if completion possible(claim, cash) then
 		begin
 		return loan(loan, cash);
 		completed: = true;
 		progress:= true;
 		end
 		until not progress;
 		end


for every customer do...

is equivalent to

for customer:= rain(B) to max(B) do...

Algorithm 2.3 shows that the current state is safe if the banker eventually can get his original capital back.

 	ALGORITHM 2.3 The Banker's AIgorithm (cont.)
 	function all transactions completed(state: S): boolean;
 	begin
 	with state do
 	all transactions completed := capital = cash;
 	end


 		ALGORITHM 2.4 The Banker's Algorithm (cont.)
 		type C = array D of integer;
 		D = 1..number of currencies;
 		function completion possible(claim, cash: C): boolean;
 		vat currency: D;
 		label no
 		begin
 		for every currency do
 		if claim(currency) > cash(currency)then
 		begin
 		completion possible:= false;
 		exit no;
 		end
 		completion possible:= true;
 		end


 		ALGORITHM 2.5 The Banker's Algorithm (cont.)
 		procedure return loan(var loan, cash: C);
 		vat currency: D;
 		begin
 		for every currency do
 		cash (currency): = cash (currency) + loan (currency);
 		end


2.6.3. Conclusion

I have constructed a non-trivial program (Algorithm 2.6) step by step in a hierarchal manner. At each level of programming, the problem is described in terms of a small number of variables and operations on these variables.

 		ALGORITHM 2.6 The Complete Banker's AIgorithm
 		type S = record
 		transactions: array B of
 		record
 		claim, loan: C;
 		completed: boolean;
 		end
 		capital, cash: C;
 		end
 		B = 1..number of customers;
 		C = array D of integer;
 		D = 1..number of currencies;
 		function safe(current state: S): boolean;
 		vat state: S;
 		procedure complete transactions(vat state: S);
 		vat customer: B; progress: boolean;
 		Sec. 2.6. PROGRAM CONSTRUCTION
 		function completion possible(claim, cash: C): boolean;
 		var currency: D;
 		label no
 		begin
 		for every currency do
 		if claim(currency) > cash(currency)then
 		begin
 		completion possible:= false;
 		exit no;
 		end
 		completion possible := true;
 		end
 		procedure return loan(var loan, cash: C);
 		var currency: D;
 		begin
 		for every currency do
 		cash(currency):= cash(currency) + loan(currency);
 		end
 		begin
 		with state do
 		repeat
 		progress:= false;
 		for every customer do
 		with transactions(customer) do
 		if not completed then
 		if completion possible(claim, cash) then
 		begin
 		return loan(loan, cash);
 		completed: = true;
 		progress: = true;
 		end
 		until not progress;
 		end
 		function all transactions completed(state: S): boolean;
 		begin
 		with state do
 		all transactions completed:= capital = cash;
 		end
 		begin
 		state:= current state;
 		complete transactions( sta te ) ;
 		safe: = all transactions completed(state);
 		end


This program in turn was rewritten for a still simpler machine (Algorithms 2.2 and 2.3). The refinement of previous solutions was repeated until the level of detail required by the available machine was reached.

So the design of a program involves the construction of a series of programming layers, which gradually transform the data structures and operations of an ideal, non-existing machine into those of an existing machine. The non-existing machines, which are simulated by program, are called virtual machines to distinguish them from the physical machine.

It was mentioned in Section 1.1.3 that every program simulates a virtual machine that is more ideal than an existing machine for a particular purpose: A machine that can execute the banker's algorithm is, of course, ideally suited to the banker's purpose. We now see that the construction of a large program involves the simulation of a hierarchy of virtual machines. Figure 2.10 illustrates the virtual and physical machines on which the banker's algorithm is executed.

At each level of programming, some operations are accepted as primitives in the sense that it is known what they do as a whole, but the details of how it is done are unknown and irrelevant at that level. Consequently, it is only meaningful at each level to describe the effect of the program at discrete points in time before and after the execution of each primitive. At these points, the state of the sequential process is defined by assertions about the relationships between its variables, for exam ple:

"all transactions completed =- capital = cash"

Since each primitive operation causes a transition from one state to another, a sequential process can also be defined as a succession of states in time.

As we proceed from detailed to more abstract levels of programming, some concepts become irrelevant and can be ignored. In Algorithm 2.2, we must consider assertions about the local variable, progress, as representing distinct states during the execution of the partial algorithm. But at the level of programming where Algorithm 2.2 is accepted as a primitive, complete transactions, the intermediate states necessary to implement it are completely irrelevant.

So a state is a partial description of a computation just like the concepts sequential process and operation. A precise definition of these abstractions depends on the level of detail desired by the observer. A user may recognize many intermediate states in his computation, but for the operating system in control of its execution, the computation has only a few relevant states, such as "waiting" or "running."

In order to test the correctness of a program, we must run it through all its relevant states at least once by supplying it with appropriate input and observing its output. I remarked in Section 2.3.1 that the definition of operations by enumeration of all possible data values is impractical except in extremely simple cases. The same argument leads to the conclusion that exhaustive testing of operations for all possible input values is out of the question.

If we were to test the addition of two decimal numbers of 10 digits each exhaustively, it would require 1020 executions of a program loop of, say 10/~sec, or, all in all, 3 * 107 years. The only way to reduce this time is to use our knowledge of the internal structure of the adder. If we know that it consists of 10 identical components, each capable of adding two digits and a carry, we also know that it is sufficient to test each component separately with 10 * 10 * 2 combinations of input digits. This insight immediately reduces the number of test cases to 2000 and brings the total test time down to only 20 msec.

Returning to the problem of testing the correctness of a program such as the banker's algorithm, we must accept that such a test is impossible at a level where it is only understood as a primitive: safe. We would have to exhaust all combinations of various currencies and customers in every possible state! But if we take advantage of the layered structure of our programs (see Fig. 2.10), we can start at the machine level and demonstrate once and for all that the machine instructions work correctly. This proof can then be appealed to at higher programming levels independent of the actual data values involved. At the next level of programming, it is proved once and for all that the compiler transforms Pascal statements correctly into machine instructions. And when we reach the levels at which the banker's algorithm is programmed, it is again possible to test each level separately, starting with Algorithm 2.5 and working towards Algorithm 2.1. In this chapter, I have stressed the need for simplicity in programming. I cannot accept the viewpoint that the construction of programs with a pleasant structure is an academic exercise that is irrelevant or impractical to use in real life. Simplicity of structure is not just an aesthetic pursuit--It is the key to survival in programming! Large systems can only be fully understood and tested if they can be studied in small, simple parts at many levels of detail.

2.7. LITERATURE

This chapter has briefly summarized concepts which are recognized and understood, at least intuitively, by most programmers.

The role of hierarchal structure in biological, physical, social, and conceptual systems is discussed with deep insight by Simon (1962).

In the book by Minsky (1967) you will find an excellent and simple presentation of the essential aspects of sequential machines and algorithms. Homing and Randell (1972) have analyzed the concept "sequential process" from a more formal point of view.

Hopefully, this book will make you appreciate the Pascal language. It is defined concisely in the report by Wirth (1971a).

A subject which has only been very superficially mentioned here is correctness proofs of algorithms. It was suggested independently by Naur and Floyd and further developed by Hoare (1969).

The practice of designing programs as a sequence of clearly separated layers is due to Dijkstra (1971a). He has successfully used it for the construction of an entire operating system (1968). Eventually, this constructive approach to programming may change the field from a hazardous application of clever tricks into a mature engineering discipline.

DIJKSTRA, E. W., "The structure of THE multiprogramming system," Comm. ACM 11, 5, pp. 341-46, May 1968.

DIJKSTRA, E. W., A short introduction to the art of programming, Technological University, Eindhoven, The Netherlands, Aug. 1971a.

HOARE, C. A. R., "An axiomatic basis for computer programming," Comm. ACM 12, 10, pp. 576-83, Oct. 1969.

HORNING, J. J. and RANDELL, B., "Process structuring," University of Newcastle upon Tyne, England, 1972.

MINSKY, M. L., Computation: finite and infinite machines, Prentice-Hall Inc., Englewood Cliffs, New Jersey, 1967.

SIMON, H. A., "The architecture of complexity," Proc. American Philosophical Society 106, 6, pp. 468-82, 1962.

WIRTH, N., "The programming language Pascal," Acta Informatica 1, 1, pp. 35-63, 1971a.

Глава 3 CONCURRENT PROCESSES

3.1. CONCURRENCY

The process concept was introduced in the previous chapter (see Section 2.3.2). In the following, I will summarize the basic properties of sequential and concurrent processes, and introduce a language notation for the latter.

3.1.1. Definition

A process is a sequence of operations carried out one at a time. The precise definition of an operation depends on the level of detail at which the process is described. For some purposes, you may regard a process as a single operation A, as shown on top of Fig. 3.1. For other purposes, it may be more convenient to look upon the same process as a sequence of simpler operations B, C, D, and E. And when you examine it in still more detail, previously recognized operations can be partitioned into still simpler ones: F, G, H, and so on.

If you compare this picture with the hierarchy of machines on which the banker's algorithm is executed (see Fig. 2.10), you will see that as we proceed to more detailed levels of programming, a process is described in terms of increasingly simpler operations which are carried out in increasingly smaller grains of time.

At all levels of programming, we assume that when an operation is initiated, it terminates within a finite time and delivers output which is a time-independent function of its input (see Section 2.3.1).

If the variables of a process are inaccessible to other processes, it is easy to show by induction that the final output of a sequence of operations will be a time-independent function of the initial input. In this case, a process can be regarded as a single operation, provided that it terminates. But if one process can change the variables of another process, the output of the latter may depend on the relative speed of the processes. In this case, a process cannot be regarded as a single operation. I will describe the problem of multiprogramming systems with time-dependent behavior later and proceed here to describe the basic properties of concurrent processes.

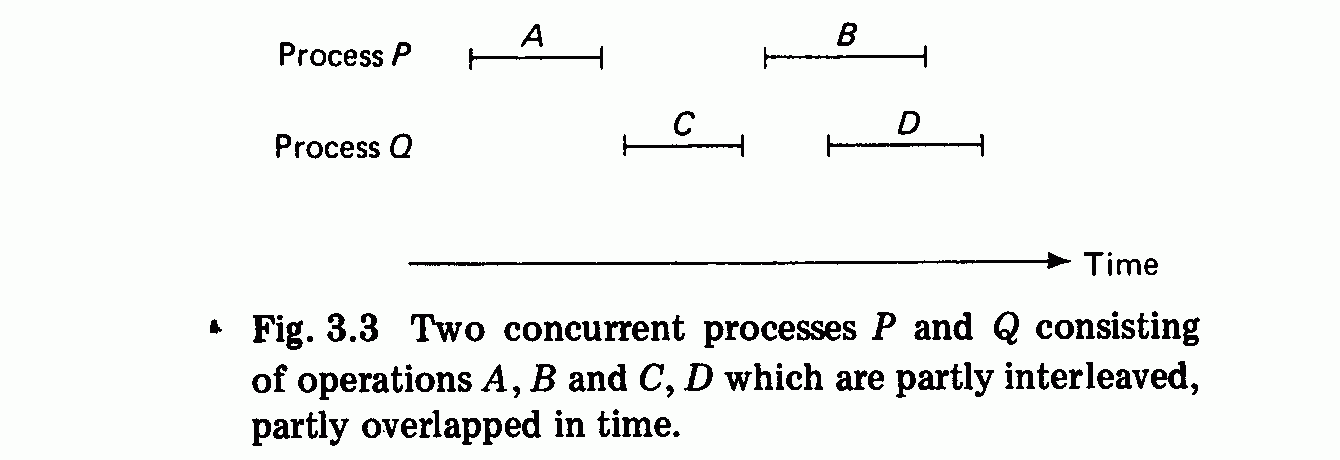

Processes are concurrent if their executions overlap in time. Figure 3.2 shows three concurrent processes, P, Q, and R. Whether the individual operations of concurrent processes are overlapped or interleaved in time, or both (as shown in Fig. 3.3), is irrelevant. Whenever the first operation of one process is started before the last operation of another process is completed, the two processes are concurrent.

In an installation where several processors work simultaneously, the machine instructions of concurrent processes can overlap in time. But if one processor is multiplexed among concurrent processes, the machine instructions of these processes can only be interleaved in time. The logical problems turn out to be the same in both cases; they are caused by our ignorance of the relative speeds of concurrent processes.

3.1.2. Concurrent Statements The language notation

cobegin S1; $2; . . . ; Sn coend

indicates that the statements $1, $2, . . . , Sn can be executed concurrently. It was first proposed by Dijkstra (1965).

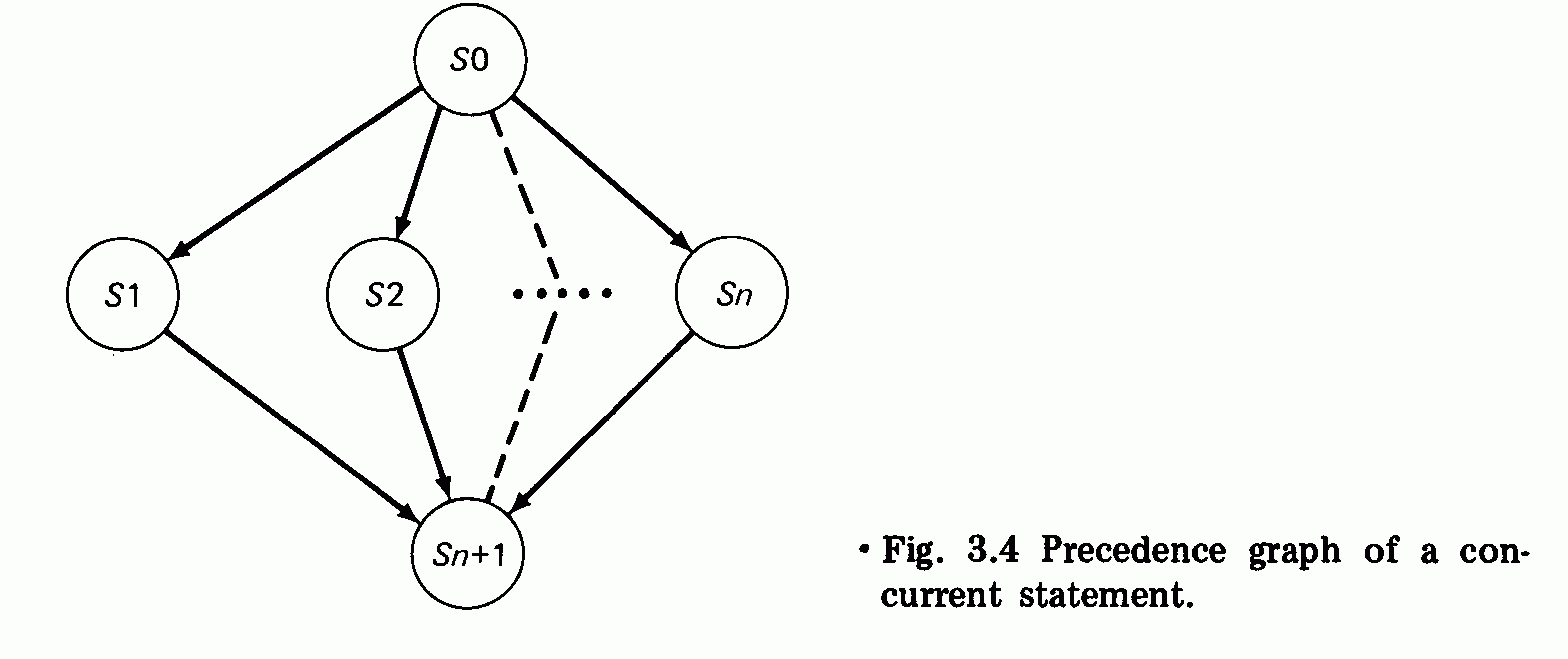

To define the effect of a concurrent statement, we must take into account the statements SO and Sn+l, which precede and follow it in a given program: This piece of program can be represented by the precedence graph shown in Fig. 3.4. The desired effect is to execute SO first, and then execute S1, $2 . . . . , Sn concurrently; when all the statements S1, $2, . . . , Sn have been terminated, the following statement Sn +1 is executed.

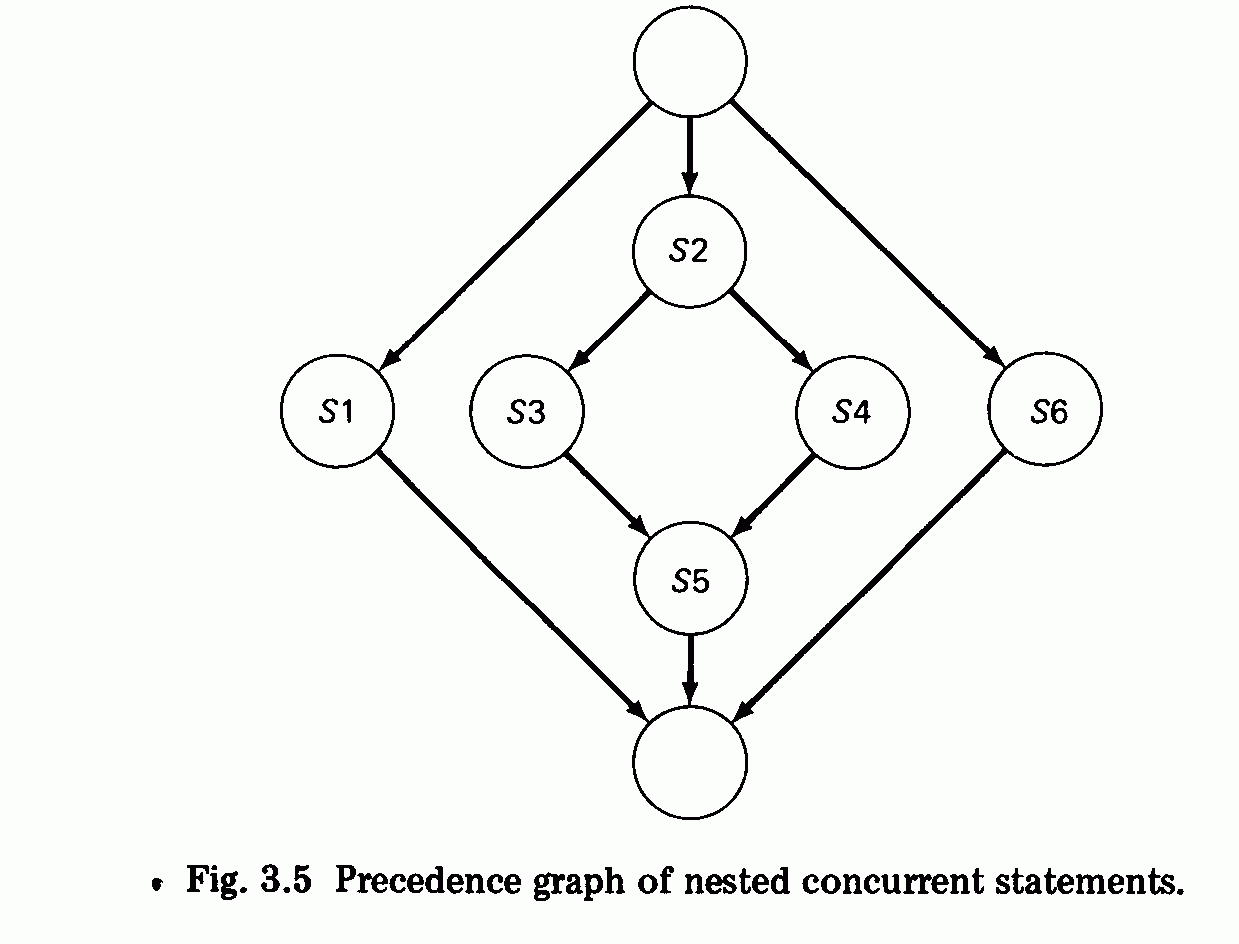

Concurrent statements can be arbitrarily nested, for example:

 	cobegin
 	$1;
 	begin
 	$2;
 	cobegin $3; $4 coend
 	$5;
 	end
 	$6;
 	coend


The use of the concurrent statement is illustrated by Algorithm 3.1, which copies records from one sequence to another.

ALGORITHM 3.1 Copying of a Sequence of Records

 		procedure copy (vaz f, g: sequence of T);
 		vat s, t: T; completed: boolean;
 		begin
 		if not empty(f) then
 		begin
 		completed:= false;
 		get(s, f);
 		repeat
 		t:= s;
 		cobegin
 		put(t, g);
 		ff empty(f) then completed:= true
 		else get(s, f);
 		coend
 		until completed;
 		end
 		end


The variables used are two sequences, f and g, of records of type T; two buffers, s and t, each holding one record; and a boolean, indicating whether or not the copying has been completed.

The algorithm gets a record from the inPut sequence, copies it from one buffer to another, puts it on the output sequence, and, at the same time, gets the next record from the input sequence. The copying, output, and input are repeated until the input sequence is empty.

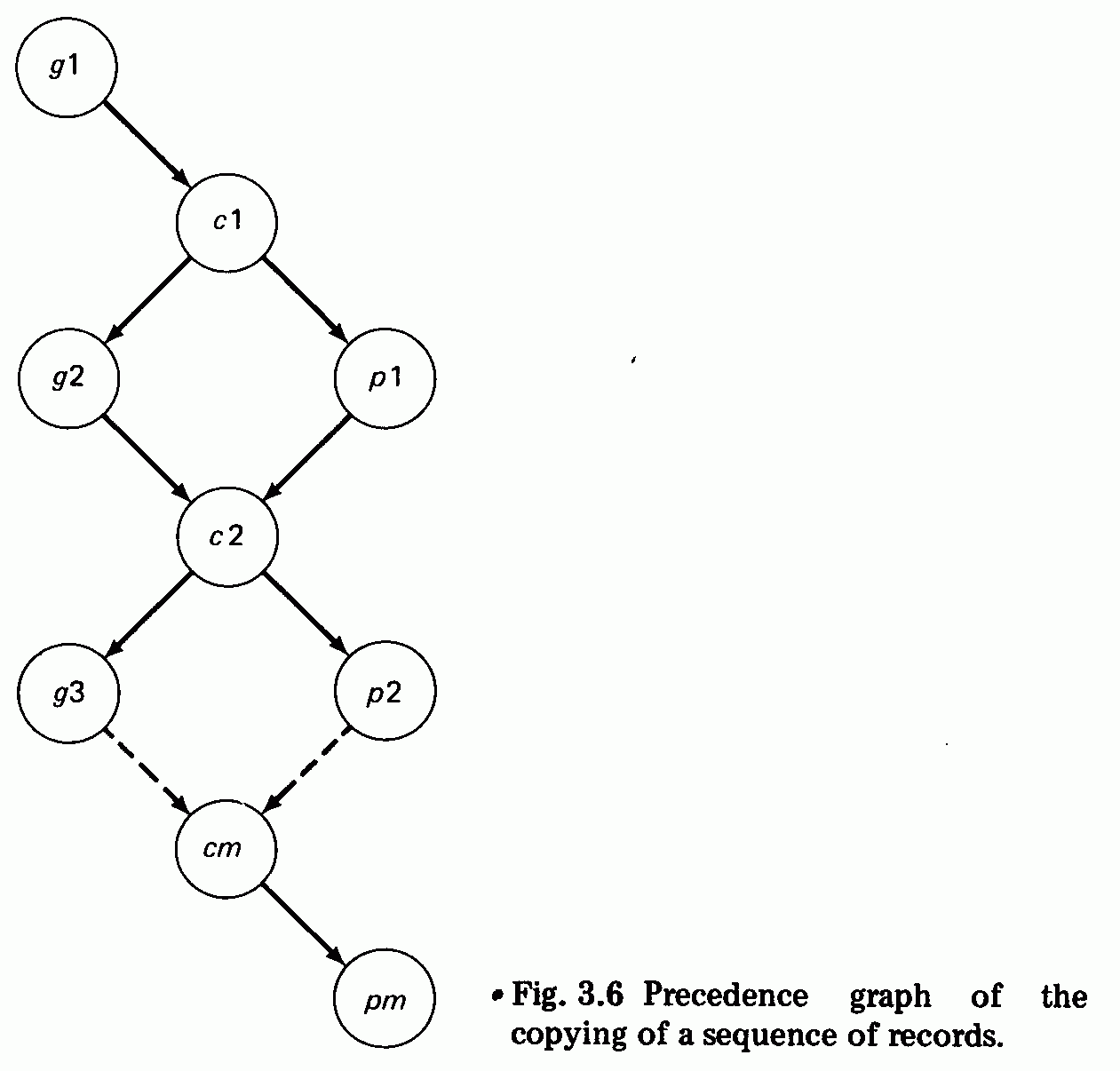

Figure 3.6 shows a precedence graph of this computation using the operations: g (get record), c {copy record), and p (put record).

3.2. FUNCTIONAL SYSTEMS

In the following, we consider more precisely what time-independent or functional behavior means, and under what circumstances multiprogramming systems have this property. As an introduction to this topic, we will first examine our ability to verify the correctness of programs.

3.2.1. Program Verification

The ideal program is one which is known with absolute certainty to be correct. It has been argued that this can be achieved by rigorous proofs (Hoare, 1969 and 1971a). I believe that the use of proof techniques contributes to the correctness of programs by forcing programmers to express solutions to problems in two different ways: by an algorithm and by a proof. But it must be remembered that a proof is merely another formal statement of the same size as the program it refers to, and as such it is also subject to human errors. This means that some other form of program verification is still needed, at least for large programs.

The next best thing to absolute correctness is immediate detection of errors when they occur. This can be done either at compile time or at run time. In either case, we rely on a certain amount of redundancy in our programs, which makes it possible to check automatically whether operations are consistent with the types of their variables and whether they preserve certain relations among those variables.

Error detection at compile time is possible only by restricting the language constructions; error detection at run time is possible only by executing redundant statements that check the effect of other statements. In practice, both methods are used, but there are limits to how far one can go in each direction: At some point, severe language restrictions and excessive run-time checking will make the system useless for practical purposes.

This leaves a class of errors that is caught neither at compile time nor at run time. It seems fair to say that these errors can only be located and corrected if programs have functional behavior which enables the designer to reproduce errors under controlled circumstances.

One can subject a sequential program to a fairly systematic initial testing by examining its internal structure and defining a sequence of input data which will cause it to execute all statements at least once. Dijkstra once remarked that "program testing can be used to show the presence of errors, but never their absence" (Nato report, 1969). Even a systematically tested program may contain some undetected errors after it has been released for normal use. If it has been subject to intensive initial testing, the remaining errors are usually quite subtle. Often, the designer must repeat the erroneous computation many times and print successive values of various internal variables to find out in which part of the program the error was made.

So program testing is fundamentally based on the ability to reproduce computations. The difficulty is that we must reproduce them under varying external circumstances. In a multiprogramming system, several user computations may be in progress simultaneously. These computations are started at unpredictable times at the request of users. 8o, strictly speaking, the environment of a program is unique during each execution. Even when computations are scheduled one at a time, a programming error is frequently observed by a user on one installation and corrected by a designer on another installation with a different configuration.

This has the following consequences: (1) an operating system must protect the data and physical resources of each computation against unintended interference by other computations; and (2) the results of each computation must be independent of the speed at which the computation is carried out.

The protection problem is discussed in a later chapter. Here we are concerned with the assumption of speed-independence. This assumption is necessary because a computation has no influence on the rate at which it proceeds. That rate depends on the presence of other computations and the possibly dynamic policy of scheduling. It is also a highly desirable assumption to make, considering our difficulty in understanding concurrent processes in terms of their absolute speeds.

The next section illustrates the consequences of time-dependent behavior of erroneous programs.

3.2.2. Time-dependent Errors

Consider again Algorithm 3.1, which copies records from a sequence f to another sequence g. Initially, f contains a sequence of records 1, 2, . . . , m, while g is empty. We will denote this as follows:

f=(1,2, . . . ,m) g=(n)

When the copying has been completed, g contains all the records in their original order while f is empty:

f = (D) g = (1, 2 . . . . , m)

The repetition statement in Algorithm 3.1 contains three component statements, which will be called COPY, PUT, and GET:

 	COPY_= t:= s
 	PUT -~ put(t, g)
 	GET -= if empty(f) then completed:= true
 	else get (s, f)


 	repeat
 	COPY cobegin PUT; GET coend
 	until completed;


 	repeat
 	cobegin COPY; PUT; GET coend
 	until completed;


To simplify the argument, we will only consider cases in which the statements COPY, PUT, and GET can be arbitrarily interleaved in time, but we will ignore the possibility that they can overlap in time.

Suppose the first record is copied correctly from sequence f to g. The computation will then be in the following state after the first execution of the repetition statement:

s =2&f=(3, . . . ,m)&t =l&g=(1)

The following table shows the possible execution sequences of COPY, PUT, and GET during the second execution of the repetition statement. It also shows the resulting output sequence g after each execution sequence.

 	COPY; PUT; GET leads to g = (1, 2)
 	COPY; GET; PUT leads to g = (1, 2)
 	PUT; COPY; GET leads to g = (1, 1)
 	PUT; GET; COPY leads to	g=(1,1)
 	GET; COPY; PUT leads to	g = (1, 3)
 	GET; PUT; COPY leads to	g = (1, 1)


 	"s=2&f=(3, . . . ,m)&t=l&g =(1)''
 	GET;
 	"s =3&f=(4, . . . ,m)&t =l&g=(1)''
 	COPY;
 	"s= 3& f=(4 . . . . . m)& t= 3&g=(1) ''
 	PUT;
 	"s=3&f =(4, . . . ,m)&t =3&g = ( 1 , 3 ) ' '


This is just for a single record of the output sequence. If we copy a sequence of 10000 records, the program can give of the order of 3 l°°°° different results! It is therefore extremely unlikely that the programmer will ever observe the same result twice.

If we consider the general case in which concurrent operations overlap in time, we are unable even to enumerate the possible results of a programming error without knowing in detail how the machine reacts to attempts to perform more than one operation simultaneously on the same variable.

The actual sequence of operations in time will depend on the presence of other (unrelated) computations and the scheduling policy used by the operating system to share the available processors among them. The programmer is, of course, unaware of the precise combination of external events that caused his program to fail and is unable to repeat it under controlled circumstances. When he repeats the program execution with the same input, it will sometimes produce correct results, sometimes different erroneous results.

The programmer's only hope of locating the error is to study the program text. This can be very frustrating (if not impossible) if the text consists of thousands of lines and one has no clues about where to look for the error.

It can be argued that such errors are perfectly reproducible in the sense that if we had observed and recorded the behavior of all computations and physical resources continuously during the execution of a given computation, it would also have been possible to reproduce the complete behavior of the computer installation. But this is a purely hypothetical possibility. Human beings are unable to design programs which take into account all simultaneous events occurring in a large computer installation. We must limit ourselves to programs which can be verified independently of other programs. So, in practice, events causing time-dependent results are not observed and recorded, and must therefore be considered irreproducible.

Concurrent programming is far more hazardous than sequential programming unless we ensure that the results of our computations are reproducible in spite of errors. In the example studied here, this can easily be checked at compile time, as I will describe in the next section.

- 3.2.3. Disjoint Processes

The two concurrent processes in Algorithm 3.1

 	cobegin
 	put(t, g);
 	if empty(f} then completed: = true
 	else get(s, f);
 	coend


Concurrent processes which operate on disjoint sets of variables are called disjoint or non-interacting processes.

In the erroneous version of Algorithm 3.1

 	cobegin
 	t:=s;
 	put(t, g);
 	if empty(f) then completed:= true
 	else get(s,f);
 	coend


When a process refers to a variable changed by another process, it is inevitable that the result of the former process will depend on the time at which the latter process makes an assignment to this variable. These time-dependent errors can be caught at compile time if the following restriction on concurrent statements is made: The notation

cobeginS1;S2; . . . ;Sn coend

indicates that statements S1, $2, . . . , Sn define disjoint processes which can be executed concurrently. This means that a variable vi changed by a statement Si cannot be referenced by another statement Sj {where j ? i).

In other words, we insist that a variable subject to change by a process must be strictly private to that process; but disjoint processes can refer to common variables not changed by any of them.

To enable the compiler to check the disjointness of processes, the language must have the following property: It must be possible to determine the identity of a statement's constant and variable parameters by inspecting the statement.

In Pascal this is certainly possible for assignment statements and expressions involving variables of primitive types and record types only. Components of arrays are selected by indices determined at run time only. So, at compile time it is necessary to require that an entire array be private to a single process within a concurrent statement.

Functions present no problems in Pascal since they cannot perform assignment to non-local variables. But with procedures, it is necessary to observe a certain discipline in the use of parameters.

The language notation must distinguish between constant and variable parameters. Pascal already does this: A comparison of a procedure statement

P(a, b)

with the corresponding procedure declaration

procedure P(const c: C; vat v: V)

immediately shows that the procedure statement will leave variable a unchanged, but may change variable b.

To make a cleat distinction between constant and variable parameters, we will not permit a variable to occur both as a constant and as a variable parameter in the same procedure statement.

Without this rule one cannot make simple assertions about the effect of procedures. Consider, for example, the following procedure:

 	procedure P(const c: integer; vat v: integer);
 	begin v := c + 1 end


P(a, b)

where a and b are integer variables, we can make the assertion that upon return from the procedure, b = a + 1. But this assertion leads to a contradiction in the following case:

 	P(a, a)
 	namely a = a + 1.


 procedure P(var v, w: integer);
 begin v: = 1; w: = 2 end


P(a, b)

leads to the result a = 1 & b = 2. But when the same assertion is used for the call

P(a, a)

it leads to the contradiction a = 1 & a = 2.

These contradictions can be avoided by obeying the following rule: All variables used as variable parameters in a procedure statement must be distinct and cannot occur as constant parameters in the same statement.

A Pascal procedure can also have side effects: It can change non-local variables directly, as is shown in the following example:

 	var v: T;
 	procedure P;
 	begin . . . v:= E . . . end


One possibility is to specify all global variables referred to within a procedure P (and within other procedures called by P) explicitly in the

 	procedure declaration:
 	vat v: T;
 	procedure P;
 	global v;
 	begin . . . v:= E . . . end


A final difficulty is the exit statement. Consider the following program:

 		label L
 		begin . . . label M
 		begin . . .
 		cobegin
 		• . . exit L;
 		. . . exit M;
 		coend
 		end
 		end


We will therefore also forbid jumps out of concurrent statements.

The rules presented here are due to Hoare (1971b). They enable a compiler to identify the constant and variable parameters of every statement by simple inspection and check the disjointness of concurrent processes. This property also simplifies the analysis of programs by people and should therefore be regarded as a helpful guideline for program structuring--not as a severe language restriction.

When these rules are obeyed, the axiomatic properties of concurrent statements become very simple. Suppose statements S1, $2, . . . , Sn define disjoint processes, and each Si is an operation that makes a result Ri true if a predicate Pi holds before its execution• In other words, it is known that the individual statements have the following effects:

 	"PI" S1 "RI"
 	"P2" $2 "R2"
 	. . . . .
 	"Pn" Sn "R n"


cobegin S1; $2; . . . ; Sn coend

can then be regarded as a single operation S with the following effect

"P" S "R"

where

 P -= Pi & P2 & . . . & Pn
 R=- RI&R2&...&Rn


The usefulness of disjoint processes is of course, limited. In some cases, concurrent processes must be able to access and change common variables. I will introduce language constructs suitable for process interactions of this kind later in this chapter.

In the following we will derive a sufficient condition for timeindependent behavior of concurrent interacting processes. To do this, it is first necessary to formulate the requirement of time-independence in a slightly different way using the concept--the history of a computation.

3.2.4. The History Concept*

Consider a program which is connected to its environment by a single input variable x and a single output variable y. During the execution of the program, the input variable x assumes a sequence of values determined by the environment:

x:= a0;x:= a l ; . . . ;x:= am;

and the output variable y assumes another sequence of values determined by the program and its input:

y:= b0;y:= b l ; . . . ;y:= bn;

Together, the input sequence X = (a0, al, . . . , am) and the output sequence Y = (bO, bl . . . . , bn) define the history of a computation. For analytical purposes, the history can be represented by an array in which each row defines the sequence of values assumed by a given variable, as shown in Fig. 3.7.

A history is simply a listing of the sequences of input and output values observed during a computation. It is a time-independent representation that says nothing about the precise time at which these values were assigned to the variables.

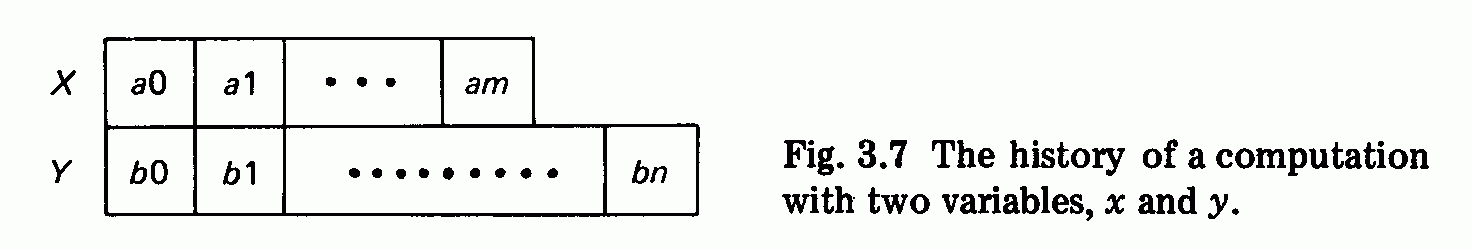

When a computation involves several variables, the history array contains a row for each of them. We can divide the complete history into the input history and the output history. Sometimes we will include the history of internal variables in the output history.

A program is functional if the output history Y of its execution always is a time-independent function f of its input history X:

Y = f(x)

A functional program produces identical output histories every time it is executed with the same input history, independent of its speed of execution.

As an example, let us again look at Algorithm 3.1 in which an input sequence

f=(1,2, . . . ,m)

is copied to an (initially empty) output sequence g.

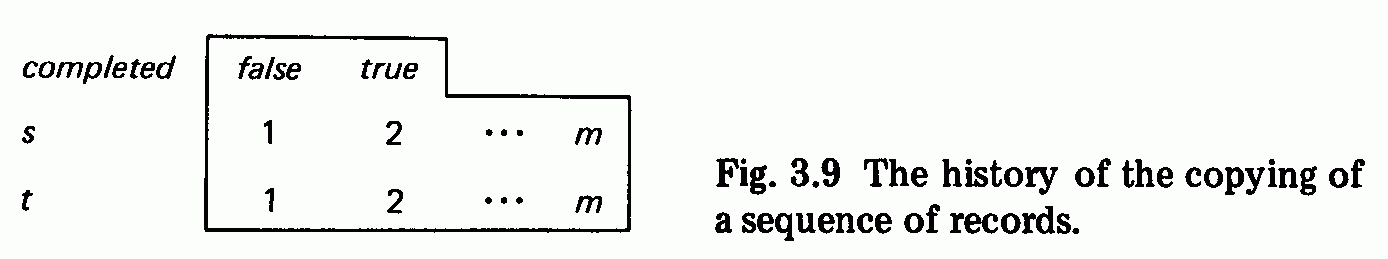

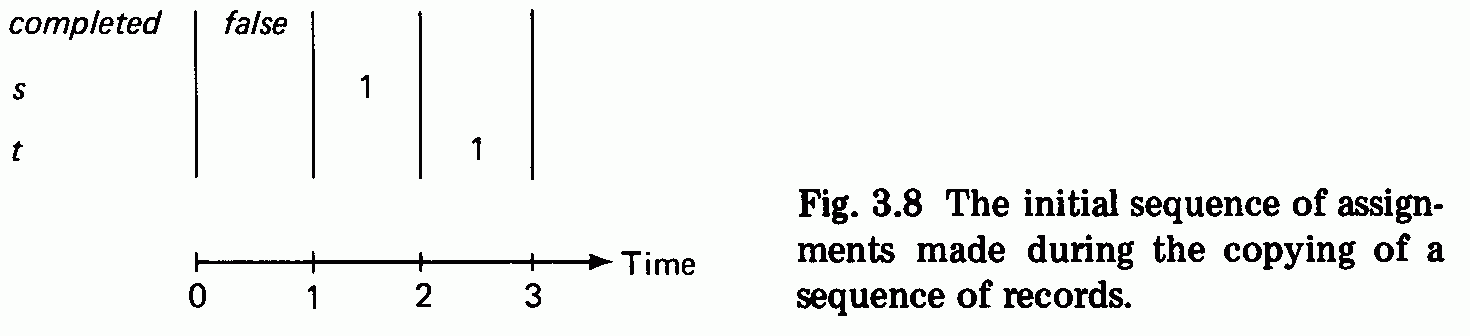

Figure 3.8 shows the sequence of assignments made initially during the execution of this algorithm. From these values (and the ones assigned during the rest of the computation), we derive the history shown in Fig. 3.9.

The input history defines the sequence of assignments to the variable s; the output history comprises the variables completed and t.

Notice that the rows in a history array are not necessarily of the same completed length because the number of assignments may be different for each variable.

Notice also that the elements in a given column of a history array do not necessarily define values assigned at the same time. A comparison of Figs. 3.8 and 3.9 immediately shows that all values in the leftmost column of the history array were assigned at different times. When a program contains concurrent statements, the sequence in which assignments to disjoint variables are made depends on the relative rates of the processes.

So, in general there are many different sequences in which a given history can be produced in time. The functional requirement only says that when the sequence of values is known for each input variable, it must be possible to predict the sequence of values for each output variable, independent of the rate at which they will be produced.

In some cases, we are still interested in observing actual rates of progress. For this purpose, time is regarded as a discrete variable which is increased by one each time an assignment to at least one of the variables considered has been completed.

These instants of time are indicated explicitly in Fig. 3.8. In a history array, an instant of time is defined by a line which crosses each row exactly once. Such a time slice defines the extent of the history at a particular instant.

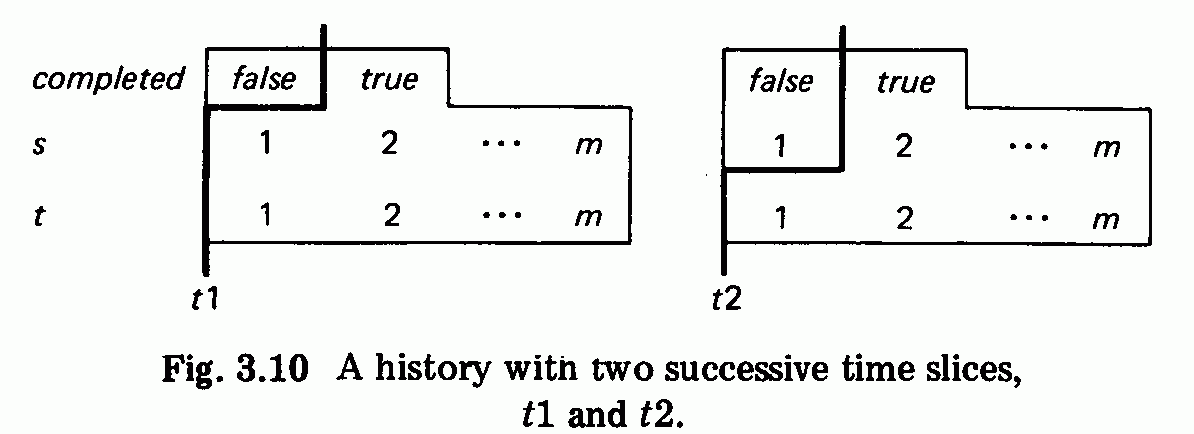

Figure 3.10 shows the previous history with two successive time slices tl and t2, which define the extent of the history after the first assignments to the variables completed and s. A history H1 is called an initial part of another history H2 if HI is contained in H2. More precisely, H1 and H2 must have the same number of rows, and each row in H1 must be equal to an initial part of the corresponding row in H2; but some rows in HI may be shorter than the corresponding rows in H2. This relationship is denoted

H1 ~ H2

During a computation, every time slice t defines an initial part H(t) of the final history H.

We will use the history concept to prove an important theorem by Patil (1970).

3.2.5. A Closure Property

Consider again a program which communicates with its environment by means of a set of distinct input and output variables. We will observe the execution of the program in two cases: In the first case, the environment supplies an input history X, and the program responds by returning an output history Y:

X~Y

In the second case, the observed input/output relationship is:

X~ -> Y~

So far, nothing has been said about whether the program is functional. If we repeat the execution with the input history X' the program may possibly produce a different output history, Y" ~ Y'.

But suppose we only consider programs which satisfy the following requirement: If during its execution, a program is supplied with two different input histories X and X', where X is contained in X', then the same relationship will hold between the corresponding output histories Y and Y':

X < X' implied Y < Y'

This is called the consistency requirement. It is a sufficient condition for functional behavior. If a consistent program is executed twice with the same input, it delivers the same output in both cases because

 	X = X' implies X ~ X' & X' ~ X
 	implies Y ~ Y' & Y' ~ Y
 	implies Y = Y'


X and X' refer to the input produced by the environment. This is not necessarily the same as the input consumed by the program. The environment may assign new values to input variables, due to erroneous synchronization, before previous values have been consumed by the program. In that case, it is impossible to predict the final output from the observed input. So the program is not consistent.

The consistency requirement is also violated if concurrent processes can enter a deadlock state in which they are unable to respond to further input under circumstances which depend on their speed of execution (see Section 2.6.1).

We now introduce an additional requirement of consistent programs: Since the output is a function of the input, a program in execution cannot produce an output value until the corresponding input value is present. This cause-and-effect relationship can be expressed as follows: Suppose we observe an input history at successive instants in time

X(0),X(1), . . . ,X(t), . . . . X

where t indicates the earliest time at which an initial part X(t) of the input is available. Let the final input and output histories be X and Y, respectively. Now it is clear that an initial input history X(t) must be contained in the final input history:

x(t) < x

Because the program is consistent, it is possible to predict part of the output history from the initial input history X(t). But in a physical system it takes a finite time to produce this output; so the earliest moment at which some or all of this output can be available is the next instant of time t + 1 where the output history is Y(t + 1). The output Y(t + 1), which is predicted from an initial part of the input, must itself be an initial part of the final output Y. So we have

Y(t + 1) ~< Y

If we combine these two physical conditions, we get the so-called dependency requirement:

X(t) ~ X implies Y(t + 1) ~< Y

In the following, we will consider programs for which the consistency and dependency requirements hold unconditionally. They are called unconditionally functional programs. We will prove the important closure property, which states that any interconnection of a finite number of unconditionally functional programs is unconditionally functional as a whole.

A system S consisting of a finite number of components S1, $2, . . . , Sn can always be partitioned successively into smaller systems consisting of two components each:

 	S = (S1, $2')
 	$2' = ($2, $3')
 	• • •
 	Sn- l ' = ( Sn- l , Sn )

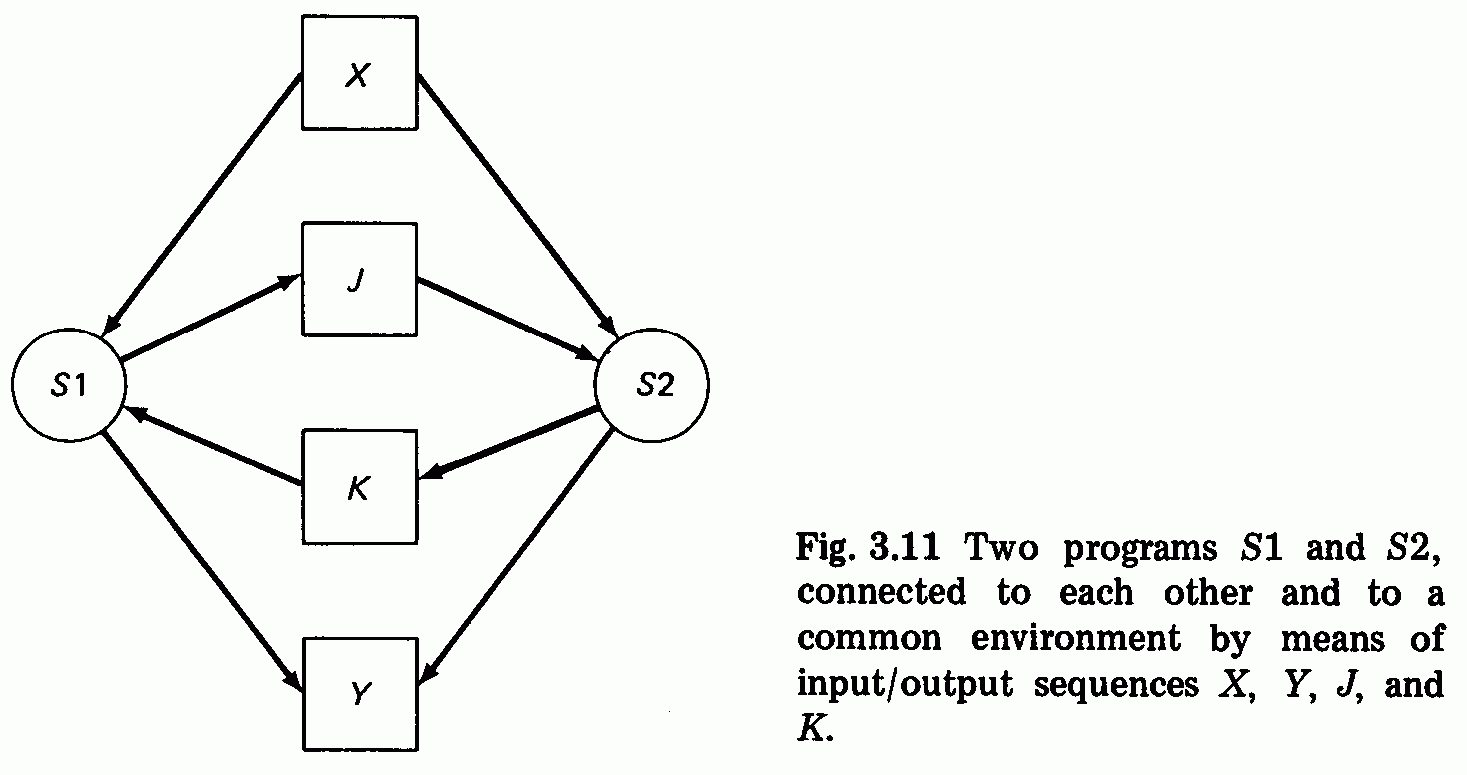

The input and output histories of S are called X and Y, as shown in Fig. 3.11. X in turn consists of two separate input histories, X1 and X2 for S1 and $2, respectively. Similarly, Y consists of two separate output histories, Y1 and Y2 for S1 and $2, respectively. The histories of internal output produced by S1 for $2, and vice versa, are called J and K. We will study the combined system S = (S1, $2) when it is supplied with two different input histories X and X' where

X~< X'

and delivers the output histories J, K, Y and J', K', Y'.

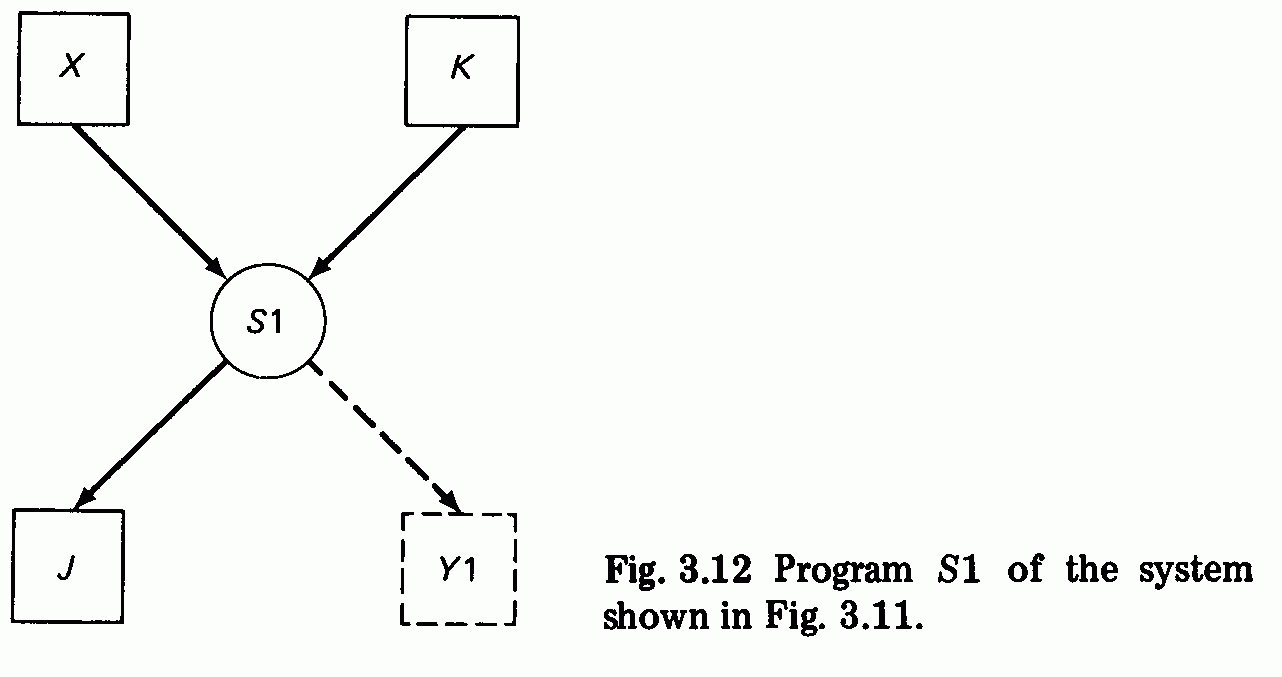

Consider first subsystem S1 and observe its input history X, K and the

corresponding output history J as shown in Fig. 3.12. (The output history Y1 is ignored for the moment.)

Suppose the following holds at time t:

X(t) ~ X' & K(t) < K'

This means that at time t during the first execution, the initial input history to S1 is contained in its final input history of the second execution.

Now since S1 is unconditionally functional, it satisfies the dependency requirement; so we have

X(t) ~ X' & K(t) ~ K' implies J(t + 1) ~ J'

By applying similar reasoning to subsystem $2, we find that

X(t) ~ X' & J(t) ~ J' implies K(t + 1) ~ K'

These results can be combined into the following:

X(t) ~ X' & J(t) ~ J' & K(t) < K' implies J(t + 1) ~ J' & K(t + 1) ~ K'

We already assumed that X ~ X', so X(t) ~ X' holds at any instant of time. Consequently, if the initial histories, J(t) and K(t), at time t are contained in the final histories, J' and K', then this is also the case at time t + 1. This is trivially true at time t = 0 where J(t) and K(t) are empty. So it holds throughout the execution that

X ~ X' implies J < J' & K ~ K'

But since the subsystems satisfy the consistency requirement, this in turn means that

X ~ X' implies Y ~ Y' So the combined system S also satisfies the consistency requirement. And, for physical reasons, it also satisfies the dependency requirement. (This can be proved formally as well.)

The closure property enables a designer to verify that a large program is functional by a step-wise analysis of smaller program components. The functional behavior is ensured by local conditions (the consistency and dependency requirements) which only constrain the relationship between a program component and its immediate environment (represented by input/output variables).

In actual systems, the consistency requirement seldom holds unconditionally. The functional behavior may depend on certain additional requirements; for example, that the input is of a certain type and is not delivered more rapidly than the system is able to consume it. A system which satisfies the consistency and dependency requirements, provided that additional constraints hold, is called conditionally functional. For such systems, the closure property holds when the additional constraints hold.

I will conclude the present discussion with some examples of useful systems in which time-dependent behavior is inherent and desired.

3.2.6. Non-functional Systems

I have stressed the importance of designing multiprogramming systems which are functional in behavior. But it must be admitted that some computational tasks are inherently time-dependent.

Consider, for example, priority scheduling according to the rule shortest job next. This involves decisions based on the particular set of computations which users have requested at a given time. If a scheduling decision is postponed a few seconds, the outcome may well be different because new and more urgent requests can be made in the meantime by users. So priority scheduling depends not only on the order in which users input their requests, but also on their relative occurrence in time.

In the spooling system shown in Fig. 1.3 there is a time-dependent relationship between the stream of jobs input and the stream of printed output. But the spooling system has one important property which makes the time-dependent behavior tolerable: It maintains a functional relationship between the input and output of each job.

The user computations are disjoint; they could be carried out on different machines. But, for economic reasons, they share the same machine. And this can only be done efficiently by introducing a certain

amount of time-dependent behavior on a microscopic time scale. However, on a macroscopic time scale, the operating system hides the timedependency from the individual user and offers him a virtual machine with perfectly reproducible behavior.

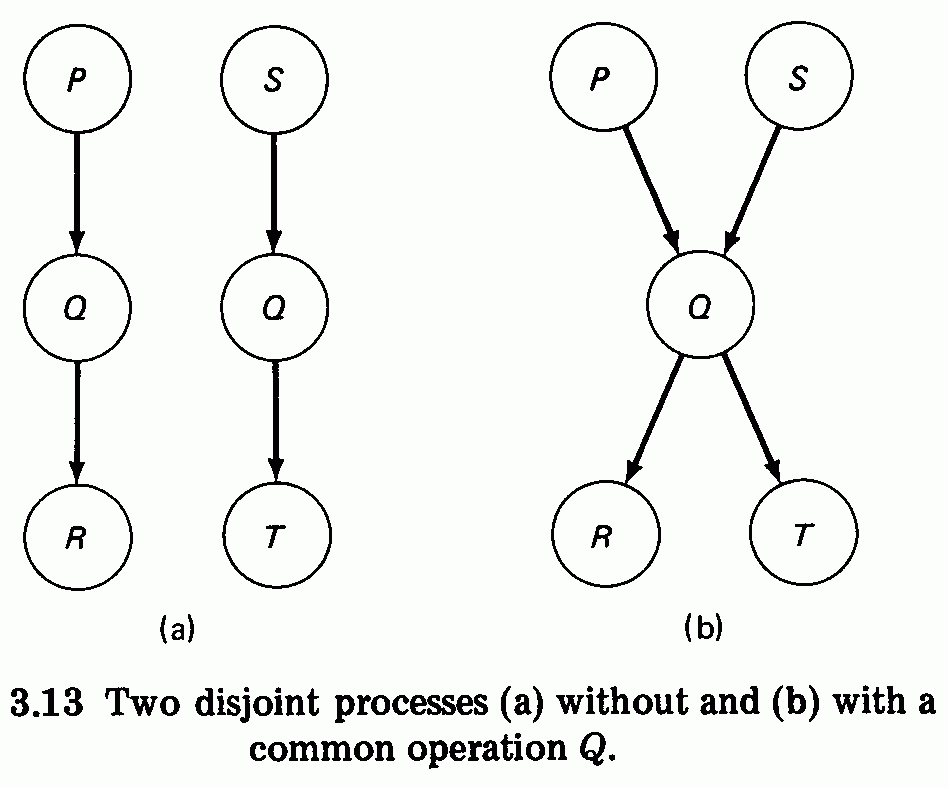

Figure 3.13 shows another example of the same principle: (a) shows two disjoint processes consisting of the operations P, Q, R and S, Q, T; (b) shows an equivalent system in which we have taken advantage of the occurrence of a common operation Q in both processes. The processes now share a single instance of operation Q, which can receive input from operations P and S and deliver output to operations R and T.

The equivalence of the two systems in Fig. 3.13(a) and (b) is based on the assumption that requests received by Q from P have no effect on the response of Q to requests received from S, and vice versa, and that Q responds to any request within a finite time.

An example of a set of common operations shared by all user computations is a filing system, which permits users to create and manipulate data and programs on backing storage and maintain them over a certain period of time.

The system in Fig. 3.13(b) is non-functional if we observe the input and output of the common operation Q because this is a time-dependent merging of data values belonging to independent processes. But the system is still functional if we only observe the relationship between the output from P and the input to R (or that between the output from S and the input to T).

So we come to the conclusion that functional behavior is an abstraction just like the concepts operation, process, and state (see Section 2.6.3). Whether or not a system is considered functional depends on the level of description chosen by the observer.

• 3.3. MUTUAL EXCLUSION

Much has been said about the role of disjoint processes and functional behavior in multiprogramming systems. We must now deal with interacting processes--concurrent processes which have access to common variables.

Common variables are used to represent the state of physical resources shared by competing processes. They are also used to communicate data between cooperating processes. In general, we will say that all common variables represent shared objects called resources. Interacting processes can therefore also be defined as processes which share resources.

To share resources, concurrent processes must be synchronized. Synchronization is a general term for any constraint on the ordering of operations in time. We have already met synchronizing rules which specify a precedence or priority of operations by constraints of the form "operation A must be executed before operation B" and "an operation of priority P must only be executed when all operations of higher priority have been executed."

In this section, we will discuss process interactions in which the constraint is of the form "operations A and B must never be executed at the same time." This synchronizing rule specifies mutual exclusion of operations in time.

3.3.1. Resource Sharing

We begin with an example in which two concurrent processes, P and Q, share a single physical resource R. P and Q are cyclical processes which every now and then wish to use R for a finite period of time, but they cannot use it at the same time.

An example of a resource that can be accessed only by one process at a time is a magnetic tape station. In this case, the requirement of mutual exclusion is dictated by the physical characteristics of the resource: Since we can only nhount one tape at a time on a magnetic tape station and access its data strictly sequentially, it is impractical to let several processes use the tape station at the same time. But, as we shall see, there is also a deeper logical reason for the requirement of mutual exclusion of certain operations in time.

We will follow a chain of arguments made by Dijkstra (1965) to illuminate the nature of the mutual exclusion problem.

Let us first try the following approach: The resource R is represented by a boolean, indicating whether it is free or occupied at the moment. Each process goes through a cycle in which it first reserves the resource, then uses it, and finally releases it again. Before reserving the resource, a process waits in a loop until the resource is free. This leads to the following program:

 	var free: boolean;
 	begin
 	free: = true;
 	cobegin
 	"P" repeat
 	repeat until free;
 	free: = false;
 	use resource;
 	free: = true;
 	P passive;
 	forever
 	"Q" repeat
 	repeat until free;
 	free:-- false;
 	use resource;
 	free:= true;
 	Q passive;
 	~orever~
 	coend
 	end


Initially, free is true. It is therefore possible for P a~ld Q to refer to free at the same time and find it true. Then, they will both in good faith assign the value false to free and start using the resource. So this program does not satisfy the condition that the resource can be used by at most one process at a time.

Well, then we must try something else. In the next version, the boolean free is replaced by another boolean, Pturn, which is true when it is P's turn to use the resource and false when it is Q's turn:

 	vat Pturn : boolean;
 	begin
 	Pturn: = true;
 	cobegin
 	"P" repeat
 	repeat until Pturn;
 	use resource;
 	Pturn:= false;
 	P passive;
 	forever (cont.)
 	"Q" repeat
 	repeat until not Pturn;
 	use resource;
 	Pturn:= true;
 	Q passive;
 	forever
 	coend
 	end


P,Q,P,Q, . . .

If one of the processes, say P, is stopped in its passive state after having released the resource, the other process Q will also be stopped when it has released the resource (by means of the assignment Pturn:= true) and then tries to reserve it again.

This is quite unacceptable in an installation where P and Q could be two independent user computations. We must require that a solution to the problem make no assumptions about the relative progress of the processes when they are not using the resource.

Another highly undesirable effect of the previous solution is the waste of processing time in unproductive waiting loops. This is called the busy form of waiting.

Our third attempt uses two booleans to indicate whose turn it is:

 	vat Pturn, Qturn : boolean;
 	begin
 	Pturn : = false; Qturn : = false;
 	cobegin
 	"P" repeat
 	Pturn : = true;
 	repeat until not Qturn;
 	use resource;
 	Pturn := false;
 	P passive;
 	forever (cont.)
 	"Q" repeat
 	Qturn : = true;
 	repeat until not Pturn;
 	use resource;
 	Qturn := false;.
 	Q passive;
 	forever
 	coend
 	end


not Pturn implies P passive

The two processes are completely symmetrical, so the assertion

 	not Pturn implies P passive
 	not Qturn implies Q passive


Process P waits until Qturn is false before it uses the resource, so

 	P active implies not Q turn
 	implies Q passive


 P active implies Q passive
 & Q active implies P passive


Mutual exclusion is therefore guaranteed, and it is not difficult to see that stopping one process in its passive state does not influence the progress of the other process. But it is a highly dangerous solution: The processes can make the assignments

Pturn := true Qturn := true

' at the same time and then remain indefinitely in their waiting loops waiting for one of the booleans to become false. In short, the solution can lead to a deadlock.

We learn from our mistakes. The lesson of this one is that when competing processes request the resource at the same time, the decision to grant it to one of them must be made within a finite time.

It is possible to continue along these lines and find a correct solution. This was first done by Dekker and described by Dijkstra (1965). Dijkstra solved the general case, in which n processes share a single resource. The solution turns out to be far too complicated and inefficient to be of practical value.

I have described these preliminary, incorrect solutions to make you appreciate the subtlety of the mutual exclusion problem and discover a set of criteria that a realistic solution must satisfy. Let me repeat these criteria:

(1) The resource in question can be used by one process at a time at most.

{2) When the resource is requested simultaneously by several processes, it must be granted to one of them within a finite time.

(3) When a process acquires the resource, the process must release it again within a finite time. Apart from this, no assumption is made about the relative speeds of the processes; processes may even be stopped when they are not using the resource.

(4) A process should not consume processing time when it is waiting to acquire the resource. ~ ~P,~ ,~?K~ For the moment, we will leave the problem there and consider another instance of it in which interacting processes are cooperating rather than competing.

• 3.3.2. Data Sharing

The second example of process interaction is taken from an actual system that supervises an industrial plant. Among other things, this real-time system measures the consumption of energy and the production of materials in the plant continuously and reports it to management every few hours.

Consumption and production are measured in discrete units (kilowatthours and product units) and recorded in pulse registers connected to a computer. The computer is multiplexed among a number of concurrent processes. A cyclical process P inputs and resets the pulse registers every few seconds and adds their values (0 or 1) to a corresponding number of integer variables. Another cyclical process Q outputs and resets the integer counters every few hours. Operators can change the frequency of execution of P and Q independently. The processes therefore do not know their relative rates.

Let us assume that the periodic scheduling of processes and the input/ output are handled correctly by standard procedures. No generality is lost by considering only one pulse counter v. As a first attempt, I suggest the following solution:

 	var-v: integer;
 	begin
 	V: = 0;
 	cobegin
 	"P" repeat
 	delay(l);
 	v:= v + input;
 	forever
 	"Q" repeat
 	delay(18000);
 	output(v);
 	v:= 0;
 	forever
 	coend
 	end


The intention is that a value of v output at time t should define the number of pulses accumulated over the past 18,000 seconds, or 5 hours, prior to time t.

Now, in most computers, statements such as

v: = v + input output(v)

are executed as a sequence of instructions which use registers, say r and s, to hold intermediate results:

 	r:= input; s: = v;
 	r: = r + v; output(s);
 	V: = r;


One possibility is that the instructions of P and Q are interleaved as follows:

 	"v = pulse count"
 	P: r: = 1;
 	Q: s: = v; output(s);
 	P: r:= r + v;v: = r;
 	Q: s: = 0; v: = 8;
 	"v = 0 & output = pulse count"


 	"v = pulse count"
 	P: r: = l;r: =r + v;
 	Q: s:= v; output(s);
 	Q: S: = 0; V: = S;
 	P: v:= r;
 	"v = pulse count + 1 & output = pulse count"


"v = 1 & output = pulse count"

or

"v = 0 & output = pulse count + 1"

depending on when the last pulse was measured.

The penalty of breaking the laws of concurrent statements is time-dependent erroneous behavior. The example shown here illustrates the remark made in Section 3.1.1 about concurrent processes executed simultaneously on several processors or on a single, multiplexed processor: "The logical problems turn out to be the same in both cases; they are caused by our ignorance of the relative speeds of concurrent processes."

It should be evident by now that our present programming tools are hopelessly inadequate for controlling access to physical resources and data shared by concurrent processes. A new tool is needed, and like our previous tools it should be simple to understand, efficient to implement, and safe to use.

• 3.3.3. Critical Regions

The erroneous behavior in the pulse counting program is caused by the interleaving of concurrent statements in time. If we were sure that only one process at a time could operate on the common variable v, the previous solution would work.

So let us postulate a language construction which has precisely this effect. I will use the notation

vat v: shared T

to declare a common variable v of type T.

Concurrent processes can only refer to and change common variables within structured statements called critical regions. A critical region is defined by the notation

region v do S

which associates a statement S with a common variable v. This notation enables a compiler to check that common variables are used only inside critical regions.

Critical regions referring to the same variable v exclude one another in time. More precisely, we make the following assumptions about critical regions on a variable v:

(1) When a process wishes to enter a critical region, it will be enabled to do so within a finite time.

(2) At most, one process at a time can be inside a critical region.

(3) A process remains inside a critical region for a finite time only.

Criterion 3 says that all statements operating on a common variable must terminate.

Criterion 2 expresses the requirement of mutual exclusion in time of these statements.

Criteria 1 and 2 put the following constraints on the scheduling of critical regions associated with a given variable: (a) when no processes are inside critical regions, a process can enter a critical region immediately; (b) when a process is inside a critical region, other processes trying to enter critical regions will be delayed; and (c) when a process leaves a critical region while other processes are trying to enter critical regions, one of the processes will be enabled to proceed inside its region; (d) these decisions must be made within finite periods of time.

Finally, (e) the priority rule used to select a delayed process must be fair: It must not delay a process indefinitely in favor of more urgent processes. An example of a fair scheduling policy is first-come, first-served, which selects processes in their order of arrival; an unfair policy is last-come, first-served, which favors the latest request.

Although we require that scheduling be fair, no assumptions are made about the specific order in which processes are scheduled. This depends entirely on the underlying implementation. As Dijkstra (1971b) puts it: "In the long run a number of identical processes will proceed at the same macroscopic speed. But we don't tell how long this run is." (See also Dijkstra, 1972.)

Critical regions can be implemented in various ways. We are going to consider some of them later.

• Critical regions referring to different variables can be executed simultaneously, for example:

 	vat v: shared V; w: shared W;
 	cobegin
 	region v do P;
 	region w do Q;
 	coend


 	region v do
 	begin . . .
 	regionwdo . . . ;
 	. . .
 	end


 	cobegin
 	"P" region v do region w do . . . ;
 	"Q" region w do region v do . . . ;
 	coend


The concept critical region is due to Dijkstra (1965). The language constructs which associate critical regions with a common variable are my own (Brinch Hansen, 1972b). Similar constructs have been proposed independently by Hoare (1971b).

With this new tool, common variables and critical regions, the solutions to our previous problems become trivial. In the first problem, our only concern was to guarantee mutual exclusion of operations on a physical resource performed by concurrent processes. Algorithm 3.2 solves the problem in the general case of n processes.

ALGORITHM 3.2 A Resource R Shared by n Concurrent Processes

 	vat R: shared boolean;
 	cobegin
 	"PI" repeat
 	region R do use resource;
 	P1 passive;
 	forever
 	• • • • •
 	"Pn" repeat
 	region R do use resource;
 	Pn passive;
 	forever
 	coend


ALGORITHM 3.3 A Variable v Shared by Two Concurrent Processes

 	vat v: shared integer;
 	begin
 	v: = O;
 	cobegin
 	"P" repeat
 	delay(I);
 	region v do v:= v + input;
 	forever
 	"Q" repeat
 	delay(18000);
 	region v do begin
 	output(v);
 	V: = O;
 	end
 	forever
 	coend
 	end


3.3.4. Conclusion

Critical regions provide an elegant solution to the resource sharing problem. But how fundamental is this concept? After all, we succeeded in one instance in solving the problem without introducing critical regions in our language. I am referring to the algorithm in Section 3.3.1, which permits a resource to alternate between two processes: P, Q, P, Q, . . . . This solution may not be ideal, but it does ensure mutual exclusion without using critical regions--or does it?

In the analysis of its effect, I made the innocent statement: "There are only two cases to consider: eitherPturn is true or it is false." These are the only values that a boolean variable can assume from a formal point of view. But suppose the computer installation consists of several processors connected to a single store as shown in Fig. 2.3. Then, it is quite possible that the operations of processes P and Q can overlap in time. We must now carefully examine what happens in this physical system when P and Q try to operate simultaneously on the variable Pturn.

Suppose process P initiates the assignment

Pturn := false

This storage operation takes a finite time. We know that Pturn is true before the operation is started and that Pturn will be false when the operation is completed. But there is a transitional period, called the instruction execution time, during which the physical state of the storage cell is unknown. It is changing in a time-dependent manner, determined by the characteristics of the electronic circuits and the storage medium used.

If process Q is allowed to refer to the same storage location while the assignment is in progress, the resulting value (or more precisely, the bit combination used to represent the value) is unpredictable. In other words, process Q is performing an undefined operation.

The hardware designer solves this problem by connecting the concurrent processors to a sequential switching circuit called an arbiter. The arbiter ensures that, at most, one processor at a time can access a given storage location. It is a hardware implementation of critical regions.

So our reasoning on the effect of the algorithm in Section 3.3.1 was based on the implicit assumption that load and store operations on a given variable exclude each other in time. The same assumption underlies Dekker's solution to the resource sharing problem.

The load and store operations are proper critical regions at the short grains of time controlled by hardware. But at higher levels of programming, we must guarantee mutual exclusion in larger grains of time for arbitrary statements. The language construct

region v do S

is introduced for this purpose.

Mutual exclusion is indeed one of the most fundamental concepts of programming. Whenever we make assertions about the effect of any operation on a certain variable, for example:

 	"A: array 1..n of integer"
 	sort(A);
 	"for all i,1: 1.. n (i ~ jimpliesA(i) ~ A(j))"


• In sequential computations, mutual exclusion is automatically achieved because the operations are applied one at a time. But we must explicitly indicate the need for mutual exclusion in concurrent computations.

It is impossible to make meaningful statements about the effect of concurrent computations unless operations on common variables exclude one another in time. So in the end, our understanding of concurrent processes is based on our ability to execute their interactions strictly sequentially. Only disjoint processes can proceed at the same time.

• But there is one important difference between sequential processes and critical regions: The statements $1, $2, . . . , Sn of a sequential process are totally ordered in time. We can therefore make assertions about its progress from an initial predicate P towards a final result R :

"P" S1 "Ri" $2 "R2" . . . "Rn-l" Sn "R"

In contrast, nothing is specified about the ordering of critical regions in time--they can be arbitrarily interleaved. The idea of progressing towards a final result is therefore meaningless. All we can expect is that each critical region leave certain relationships among the components of a shared variable v unchanged. These relationships can be defined by an assertion I about v which must be true after initialization of v and before and after each subsequent critical region. Such an assertion is called an invariant.

When a process enters a critical region to execute a statement S, a predicate P holds for the variables accessible to the process outside the critical region, and an invariant I holds for the shared variable accessible inside the critical region. After the completion of statement S, a result R holds for the former variables and invariant I has been maintained.

So a critical region has the following axiomatic property:

 	,,p,,
 	region v do "P & I" S "R & I";
 	,,R,,


We will now study more direct interactions between processes cooperating on common tasks. Such processes are well aware of each other's existence and purpose: Each of them depends directly on data produced by other members of the community.

3.4.1. Process Communication

To cooperate on common tasks, processes must be able to exchange data. Figure 3.14 shows the situation we will study. A process P produces and sends a sequence of data to another process C, which receives and consumes them. The data are transmitted between the processes in discrete portions called messages. They are regarded as output by P and as input by C.

Since either process can proceed at a rate independent of the other's, it is possible that the sender may produce a message at a time when the receiver is not yet ready to consume it (it may still be processing an earlier message). To avoid delaying the sender in this situation, we introduce a temporary storage area in which the sender can place one or more messages until the receiver is ready to consume them. This storage area is called a buffer and designated B; its function is to smooth speed variations between the processes and occasionally permit the sender to be ahead of the receiver.

The communication must be subject to two resource constraints: (1) the sender cannot exceed the finite capacity of the buffer; and (2) the receiver cannot consume messages faster than they are produced.

These constraints are satisfied by the following synchronizing rule: If the sender tries to put a message in a full buffer, the sender will be delayed until the receiver has taken another message from the buffer; if the receiver tries to take a message from an empty buffer, the receiver will be delayed until the sender has put another message into the buffer.

We also assume that all messages are intended to be received exactly as they were sent--in the same order and with their original content. Messages must not be lost, changed, or permuted within the buffer. These requirements can be stated more precisely with the aid of Fig. 3.15.

The sequence S of messages sent by a producer P and the corresponding sequence R of messages received by a consumer C are shown conceptually as infinite arrays:

vat S, R: array 0..co of message

Two index variables s and r

vat s, r: 0..co

initialized to zero, define the number of messages sent and received at any instant in time:

 s > 0 implies S(1) to S(s) have been sent in that order
 r > 0 implies R(1) to R(r) have been received in that order


(1) The number of messages received cannot exceed the number of messages sent

0 < r < s

(2) The number of messages sent, but not yet received, cannot exceed the buffer capacity max

O < s-r < max

(3) Messages must be received exactly as they are sent

for i: 1..r (R(i) = S(i))

So, all in all, we have the following communication invariant:

 	O < r < s < r+max&
 	for i: 1..r (R(i) = S(i))


var B: buffer max of T

It declares a message buffer B, which can transmit messages of type T between concurrent processes. The buffer capacity is defined by an integer constant, max.

Messages are sent and received by means of the following standard procedures:

send(M, B) receive(M, B)

where M is a variable of type T.

Since send and receive refer to a common variable B, we require that these operations exclude each other in time. They are critical regions with respect to the buffer used.

It is worth pointing out that with the synchronizing rules defined, a sender and a receiver cannot be deadlocked with respect to a single message buffer. A sender can only be delayed when a buffer is full

s = r + max

and a receiver can only be delayed when a buffer is empty

s=r

A situation in which they are both delayed with respect to the same buffer is therefore impossible if the buffer has a non:zero capacity max > O.

It is also interesting to notice that a message buffer (if properly used) is unconditionally functional in the sense defined in Section 3.2.5.

If we observe a message sequence X going into a buffer, we expect that a message sequence Y = X will eventually come out of it. And if we observe two input sequences, X and X', where the former is contained in the latter, then we have trivially that

X < X' implies Y < Y' So a message buffer satisfies the consistency requirement if all messages sent are eventually received. And since send and receive cannot take place at the same time, it takes a finite time for a message to pass through the buffer. So the dependency requirement is also satisfied.

From the closure property we conclude that a set of unconditionally functional processes connected only by message buffers is unconditionally functional as a whole, provided there are only one sender and one receiver for each buffer, and all messages sent are eventually received.

It is quite possible, with the synchronizing rules defined here, to connect several senders and receivers to a single buffer, as shown in Fig. 3.16. But when this is done, the input to the buffer is a time-dependent merging of messages from m different processes, and the output is a time-dependent splitting of messages to n different receivers. In that case, there is no functional relationship between the output of each producer and the input of each consumer.

The communication primitives, send and receive, as proposed here will transmit messages by value; that is, by copying them first from a sender variable M into a buffer B, and then from B into a receiver variable M'. This is only practical for small messages.

For larger messages, the data structures and primitives must be defined such that messages are transmitted by reference, that is; by copying an address from one process to another. But in order to satisfy the communication invariant, such a language construct must ensure that at most one process at a time can refer to a message variable.

In the following, I will consider the simplest possible form of process communication--the exchange of timing signals.

3.4.2. Semaphores

In some cases, a process is only interested in receiving a timing signal from another process when a certain event has occurred. But apart from that, no other exchange of data is required.

An example is Algorithm 3.3 where each process wishes to be delayed until a certain interval of time has elapsed.

This can be regarded as a special case of process communication in which an empty message is sent each time a certain event occurs. Since the messages are empty (and therefore indistinguishable), it is sufficient to count them. The buffer is therefore reduced to a single, non-negative integer, which defines the number of signals sent, but not yet received.

Such a synchronizing variable is called a semaphore. It was first proposed and investigated by Scholten and Dijkstra. A semaphore variable v will be declared as follows:

vat v: semaphore

The corresponding send and receive primitives will be called

signal(v) wait(v)

(Dijkstra originally called them V and P.)

Since a semaphore is a common variable for its senders and receivers, we must require that signal and wait operations on the same semaphore exclude each other in time. They are critical regions with respect to the semaphore.

Following Habermann (1972), a semaphore v will be characterized by two integer components:

 	s(v) the number of signals sent
 	r(v) the number of signals received
 	Initially, s(v) = r(v) = O.


0 < r(v) < s(v) < r(v) + max(integer)

It means that: (1) a process can only send or receive some or no signals; (2) signals cannot be received faster than they are sent; and (3) a semaphore can only count to the upper limit of integers set by a given machine.

It is useful to permit an initial assignment to a semaphore before process communication begins. So we will introduce a third semaphore component:

c(v) the number of initial signals

and permit an assignment:

V: = C

to be made outside concurrent statements. But within concurrent statements, the orily operations permitted on a semaphore v are still signal and wait.

The semaphore invariant now becomes

0 < r(v) < s(v) + c(v) ~ r(v) + max(integer)

In most computers, the range of integers is much larger than the number of unconsumed signals that can occur in practice. For example, in a computer with 24-bit words, max(integer) = 8388607. We will therefore ignore this constraint in the following and assume that an implementation treats semaphore overflow as a programming error.

The synchronizing rules of semaphores are the following:

(1) If the operation wait (v) is started at a time when r(v) < s(v) + c(v), then r(v) is increased by one and the receiver continues; but if r(v) = s(v) + c(v), then the receiver is delayed in a process queue associated with the semaphore v.

(2) The operation signal (v) increases s(v) by one; if one or more processes are waiting in the queue associated with the semaphore v, then one of them is selected and enabled to continue, and r(v) is increased by one. The scheduling of waiting processes must be fair (see Section 3.3.3).

A critical region

 	vat R : shared T;
 	region R do S;


Sec. 3.4. PROCESS COOPERATION 95

ALGORITHM 3.4 Mutual Exclusion Implemented With Semaphores

 	vat R: record content: T; mutex: semaphore end
 	begin
 	with R do mutex := 1;
 	cobegin
 	with R do
 	begin wait( mutex ) ; $1; signal( mutex ) end
 	• • .
 	with R do
 	begin wait( mu tex ) ; Sn ; signal( mutex ) end
 	o o o
 	coend
 	end


0 ~< s(mutex) ~< r(mutex)

When this is combined with the semaphore invariant, the result is

0 ~< s(mutex) ~ r(mutex) ~ s(mutex) + 1

From the structure of Algorithm 3.4, it is evident that the number of processes n that are inside their critical regions at a given time are those which have passed a wait operation at the beginning of these regions, but have not as yet passed a corresponding signal operation at the end of the regions. So

n(mutex) = r(mutex) - s(mutex)

This in turn means that

0 ~ n(mutex) ~ 1

In other words, one process at most can be inside its critical region at any time. When no processes are inside their critical regions, we have

n(mutex) = 0

or

r(mutex) = s(mutex)

Since r(mutex) < s(mutex) + 1, in this situation another process can complete a wait operation and enter its critical region immediately.

So the correctness criteria for critical regions are satisfied provided each of the statements $1 to Sn terminates.

It is an amusing paradox of critical regions that, in order to implement one, we must appeal to the existence of simpler critical regions (namely, wait and signal). In the next chapter, which explains an implementation of wait and signal, I shall appeal to the existence of a storage arbiter--a hardware implementation of still simpler critical regions, and so on, ad infinitum. The buck ends at the atomic level, where nuclear states are known to be discrete and mutually exclusive.

At this stage, it is tempting to conclude that there is no need for extending a programming language with a construct for critical regions and common variables. The problem can evidently be solved by wait and signal operations on semaphores.

This conclusion is indeed valid in a world where programs are known to be correct with absolute certainty. But in practice it is untenable. The purpose of the language construct

 	• var v: shared T;
 	region v do S;


If we replace this structured notation with semaphores, this will have grave consequences:

(1) Since a semaphore can be used to solve arbitrary synchronizing problems, a compiler cannot conclude that a pair of wait and signal operations on a given semaphore initialized to one delimits a critical region, nor that a missing member of such a pair is an error. A compiler will also be unaware of the correspondence between a semaphore and the common variable it protects. In short, a compiler cannot give the programmer any assistance whatsoever in establishing critical regions correctly.

(2) Since a compiler is unable to recognize critical regions, it cannot make the distinction between critical regions and disjoint processes. Consequently, it must permit the use of common variables everywhere. So a compiler can no longer give the programmer any assistance in avoiding time-dependent errors in supposedly disjoint processes. The horrors that this leads to have already been demonstrated (see Section 3.2.2).

As an example of the first problem, consider the programmer who by mistake writes the following:

 	wait(mutex); signal(mutex);
 	S; S;
 	wait(mutex); wait(mutex);


The advantage of language constructs is that their correctness can be

ALGORITHM 3.5 Periodic Scheduling of Concurrent Processes

 	vat schedule: array 1..n of
 	record deadline, interval: integer end
 	start: array 1..n of semaphore;
 	timer: semaphore;
 	task: 1.. n; t: in teger;
 	begin
 	timer: = O; initialize(schedule, start);
 	cobegin
 	repeat "hardware timer"
 	t: = interval desired;
 	while t > Odot:=t-1;
 	signal(timer);
 	forever
 	repeat "scheduler"
 	wait(timer);
 	for every task do
 	with schedule(task) do
 	begin
 	deadline := deadline - 1;
 	if deadline ~ 0 then
 	begin
 	deadline: = interval;
 	signal(start(task));
 	end
 	end
 	forever
 	repeat "task i"
 	wait(start(i));
 	perform task;
 	forever
 	coend
 	end


It is reasonable to use semaphores in a compiler to implement critical regions. But at higher levels of programming, the main applicability of semaphores is in situations in which processes exchange only timing signals. This is the concept that semaphores represent in a direct, natural manner.

As an example, let us again consider the problem of scheduling a number of processes periodically in a real-time system. In Algorithm 3.3, the periodic scheduling was handled by a standard procedure that delays a process until a certain interval of time has elapsed. We now want to show how this delay can be implemented in terms of semaphores.

For each task process, we introduce a record defining the time interval between two successive executions (called the interval), the time interval until its next execution. (called the deadline), and a semaphore on which the process can wait until its next execution starts.

The time schedule of all tasks is scanned by a central scheduling process every second: In each cycle, the scheduler decreases all deadlines by one and sends a start signal to the relevant tasks.

The scheduling process in turn receives a signal from a hardware timer every second.

This scheme is shown in Algorithm 3.5.

3.4.3. Conditional Critical Regions

The synchronizing tools introduced so far:

 	critical regions
 	message buffers
 	semaphores


 	mutual exclusion
 	message available (or buffer element available)
 	signal available


For this purpose I propose a synchronizing primitive await, which delays a process until the components of a shared variable v satisfy a condition B:

 	var v: shared T
 	region v do
 	begin . . . await B; . . . end


The shared variable v can be of an arbitrary type T. The synchronizing condition B is an arbitrary boolean expression which can refer to components of v.

The await primitive can for example be used to implement conditional critical regions of the form proposed by Hoare (1971b):

 	"Consumer"                     "Producer"
 	region v do                    region v do $2
 	begin await B; $1 end


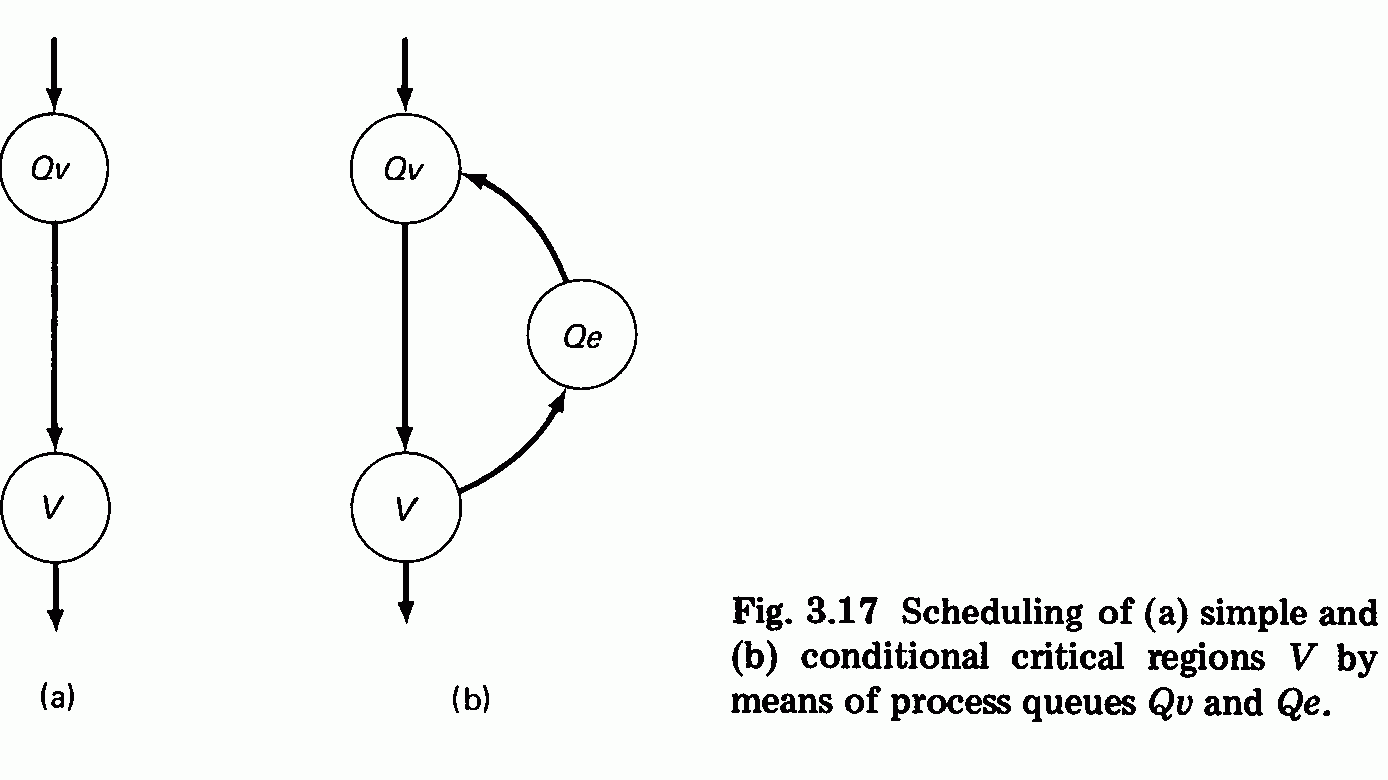

I will use this example and Fig. 3.17 to explain the implementation of critical regions and the await primitive. When a process such as the consumer above wishes to enter a critical region, it enters a main queue, Or, associated with the shared variable v. From this queue, the processes enter

their critical regions one at a time to ensure mutual exclusion of operations on v.

After entering its critical region, the consumer inspects the shared variable v to determine whether it satisfies the condition B: In that case, the consumer completes its critical region by executing the statement S1; otherwise, the process leaves its critical region temporarily and joins an event queue, Qe, associated with the shared variable.

Other processes can now enter their critical regions through the main queue, Qv. These processes may either complete their critical regions unconditionally or decide to await the holding of an arbitrary condition on variable v. If their conditions are not satisfied, they all enter the same event queue, Qe.

When another process such as the previous producer changes the shared variable v by a statement $2 inside a critical region, it is possible that one or more of the conditions expected by processes in the event queue, Qe, will be satisfied. Consequently, when a critical region has been successfully completed, all processes in the event queue, Qe, are transferred to the main queue, Qv, to permit them to reenter their critical regions and inspect the shared variable v again.

It is possible that a consumer will be transferred in vain between the main queue and the event queue several times before its condition B holds. But this can only occur as frequently as producers change the shared variable. This controlled amount of busy waiting is the price we pay for the conceptual simplicity achieved by using arbitrary boolean expressions as synchronizing conditions.

In the case of simple critical regions, we expect that all operations on a shared variable maintain an invariant I (see Section 3.3.4). Within conditional critical regions, we must also require that the desired invariant is satisfied before an await statement is executed. When the waiting cycle of a consumer terminates, the assertion B & I holds.

In the following, we will solve two synchronizing problems using first critical regions and semaphores, and then conditional critical regions. This will enable us to make a comparison of these synchronizing concepts.

• 3.4.4. An Example: Message Buffers

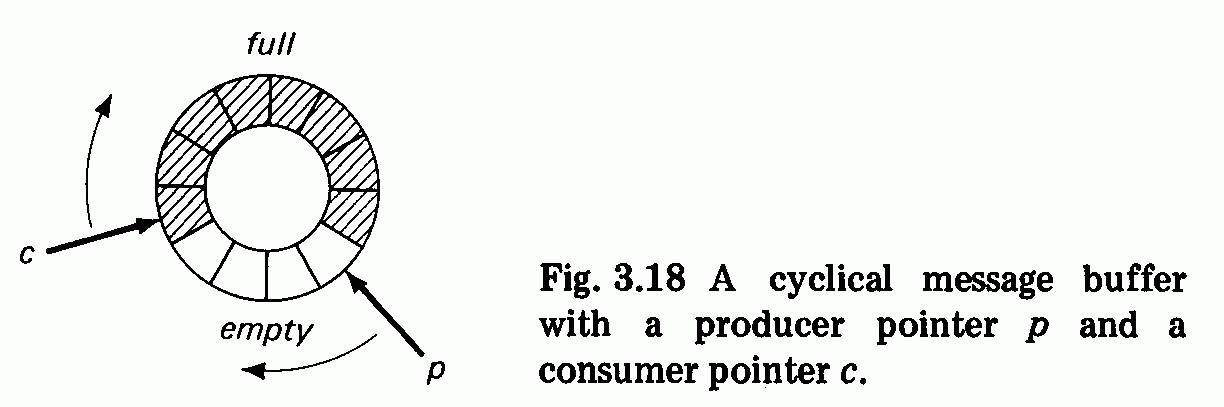

We will implement the message buffer defined in Section 3.4.1 and shown in Fig. 3.18.

The buffer consists of a finite number of identical elements arranged in a circle. The circle consists of a sequence of empty elements that can be filled by a producer and a sequence of full elements that can be emptied by a consumer. The producer and consumer refer to empty and full elements by means of two pointers, p and c. During a computation, both pointers move clockwise around the circle without overtaking each other.

The sequence of messages received

R(1),R(2), . . . ,R(r)

must be contained in the sequence of messages sent

S(1),S(2), . . . ,S(s)

Let the buffer and its pointers be declared as follows:

 	buffer: array 0..max-1 of T;
 	p, c: O. .max-l;


 	buffer(O): = S(1); R(1):= buffer(O);
 	buffer(l): = S(2); R(2):= b u f f e r ( l ) ;
 	• * • • •
 	buffer(p - 1 rood max): = S(s);R(r): = buffer(c - 1 rood max);


O~< r< s

(3) The sender must not fill an element until it has been received:

0 ~< s - r < max

The solution that uses conditional critical regions is Algorithm 3.6. Initially, pointers p and c are equal and they are moved by the same function p + 1 rood max and c + 1 mod max. So, the pointers enumerate the same sequence of buffer elements.

ALGORITHM 3.6 Process Communication With Conditional Critical Regions

 	type B = shared record
 	buffer: array 0..max-1 of T;
 	p, c: O. .max- l ;
 	full: O. .max;
 	end
 	" I n i t i a l l y p = c = full = 0"
 	procedure send(m: T; vat b: B);
 	region b do
 	begin
 	await full < max;
 	buffer(p): = m;
 	p:= (p + 1) mod max;
 	full: = full + 1;
 	end
 	procedure receive(vat m: T; b: B);
 	region b do
 	begin
 	await full > 0;
 	m: = buffer(c);
 	c: = ( c + 1) mod max;
 	full: = full - 1;
 	end


The variable full is initially zero. It is increased by one after each send and decreased by one after each receive. So

full = s - r

Receiving is only done when full > 0 or s > r; sending is only done when full < max or s - r < max. The solution is therefore correct.

Now, let us solve the same problem with simple critical regions and semaphores: We will use the pointers p and c exactly as before--so condition 1 is still satisfied.

The delay of the receiver will be controlled by a semaphore full in the following way:

 	initially: full: = 0
 	before receive: w a i t ( f u l l )
 	after send: signal(full)


 	0 ~< r ~< number of waits(full) &
 	0 ~< number of signals(full) ~< s


number of waits(full) ~< number of signals(full) + 0

Immediately before a wait operation is completed, the stronger condition

number of waits(full) < number of signals(full) + 0

holds.

From this we conclude that before a message is received, the condition

0~< r< s

holds.

We have chosen to represent the condition r < s by the semaphore full. But since timing signals are merely indistinguishable boolean events, we cannot use the same semaphore to represent the other condition, s - r max, which controls sending.

So we must introduce another semaphore, empty, and use it as follows:

 	initially:          empty := max
 	before send:        wait(empty)
 	after receive:      signal(empty)


 	0 ~< s ~< number of waits(empty) &
 	0 ~< numberofsignals(empty) ~< r &
 	number of waits(empty) < number of signals(empty) + max


0 < s < r + max

The complete solution is Algorithm 3.7.

ALGORITHM 3.7 Process Communication With Semaphores

 	type B = record
 	v: shared record
 	buffer: array O..max-1 of T;
 	p, c: O. .max- l ;
 	end
 	full, empty: semaphore;
 	end
 	"Initially p = c = full = 0 & empty = max"
 	procedure send(m: T; vat b: B);
 	begin
 	with b do
 	begin
 	wait(empty);
 	region v do
 	begin
 	buffer(p) := m;
 	p:= (p + 1) mod max;
 	end
 	signal(full);
 	end
 	end
 	procedure receive(vat m: T; b: B);
 	begin
 	with b do
 	begin
 	wait(full);
 	region v do
 	begin
 	m: = buffer(c);
 	c: = (c +1) rood max;
 	end
 	signal(empty);
 	end
 	end


This exercise has already given a good indication of the diffel'ence between conditional critical regions and semaphores:

(1) A semaphore can only transmit indistinguishable timing signals; it can therefore only be used to count the number of times a specific event has occurred in one process without being detected by another process. Consequently, it is necessary to associate a semaphore with each synchronizing condition.

The first algorithm with conditional critical regions uses two synchronizing conditions

full > 0 full< max

but only one variable full.

In the second algorithm, these conditions are represented by two semaphore variables

full empty

(2) Notice also that within conditional critical regions, the program text shows directly the condition under which a region is executed. But in the second algorithm, the association between a semaphore and a synchronizing condition exists only in the mind of the programmer. He cannot deduct from the statement

wait(empty)

that full < max before sending without examining the rest of the program and discovering that full < max when

signal(empty)

is executed after receiving! When semaphores are used to represent general scheduling conditions, these conditions can only be deduced from the program text in the most indirect manner.

One can also explain the difficulty with semaphores in the following way: If a process decided to wait on a semaphore inside a critical region, it would be impossible for another process to enter its critical region and wake up the former process. This is the reason that the wait operations in Algorithm 3.7 are executed outside the critical regions.

However, it is dangerous to separate a synchronizing condition from a successive critical region. The danger is that another process may enter its critical region first and make the condition false again. If we split critical regions in this way, we must introduce additional variables to represent intermediate states of the form "I expect condition B to hold when I enter my critical region." So, while a single variable full is sufficient in Algorithm 3.6, we need two variables, full and empty, in Algorithm 3.7.

The elegance of Algorithm 3.6 makes it tempting to suggest that the language constructs for message buffers suggested in Section 3.4.1 can be replaced by conditional critical regions and common variables. But I wish to point out that the arguments made earlier in favor of the language construct for simple critical regions can also be made for message buffers.

In Section 3.4.1, we found that a system consisting of processes connected only by buffers can be made functional as a whole. But this is only true if the send and receive operations are implemented correctly and if they are the only operations on the buffers. A compiler is unable to recognize the data structure B in Algorithm 3.6 as a message buffer and check that it is used correctly. So when message buffers are used frequently, it may well be worth including them as a primitive concept in a programming language.

We now proceed to the next problem, which is due to Courtois, Heymans, and Parnas (1971).

Оставьте свой комментарий !
Ваше имя: Комментарий: Оба поля являются обязательными  Автор   Комментарий к данной статье
