These programs trace system calls a program makes as it makes them.

Useful options:

This utility is extremely useful. It traces ALL library calls made by a program.

Useful options:

API Monitor is incredible. It will let you watch .dll calls in real time, filter on type of dll call, view

Chapter 5. Determining Interesting Functions

Objdump's most useful purpose is to disassemble a program with the -d switch. Lacking symbols, this output is a bit more cryptic. The -j option is used to specify a segment to disassemble. Most likely we will want .text, which is where all the program code lies.

Note that the leftmost column of objdump contains a hex number. This is in fact the actual address in memory where that instruction is located. Its binary value is given in the next column, followed by its mnemonic.

objdump -T will give us a listing of all library functions this program calls.

Steve Barker wrote a neat little perl script that makes objdump much more legible in the event that symbols are not included. The script has since been extended and improved by myself and Nasko Oskov. It now makes 3 passes through the output. The first pass builds a symbol table of called and jumped-to locations. The second pass finds areas between two rets, and inserts them into the symbol table as "unused" functions. The third pass prints out the nicely labeled output, and prints out a function call tree. Usage:

./disasm /path/to/binary > binary.asminfo

There are/will be few command line options to the utility. Now --graph is supported. It will generate a file called call_graph that contains definition that can be used with a program called dot to generate visual representation of the call graph.

Note: Unused functions just mean that that function wasn't called DIRECTLY. It is still possible that a function was called through a function pointer (ie, main is called this way)

Regardless of our objective, it is almost always helpful to know where main() lies. Unfortunately, when debugging symbols are removed, this is not always easy.

In Linux, program execution actually begins at the location defined by the _start symbol, which is provided by gcc in the crt0 libraries (check gcc -v for location). Execution then continues to __libc_start_main(), which calls _init() for each library in the program space. Each _init() then calls any global constructors you may have in that particular library. Global constructors can be created by making global instances of C++ classes with a constructor, or by specifying __attribute__((constructor)) after a function prototype. After this, execution is finally transferred to main through an indirect call off of the base register ebp.

The easiest technique is to try to use our friends ltrace and gdb (FIXME: the debugging chapter has been moved to after this one..) together with our disassembled output. Checking the return address of the first few functions of ltrace -i, and cross referencing that to our assembly output and function call tree should give us a pretty good idea where main is. We may have to try to trick the program into exiting early, or printout out an error message before it gets too deep into its call stack.

Other techniques exist. For example, we can LD_PRELOAD a .c file with a constructor function in it. We can then set a breakpoint to a libc function that it calls that is also in the main executable, and finish and stepi until we are satisfied that we have found main.

Even better, we could just set a breakpoint in the function __libc_start_main (which is a libc function, and thus we will always have a symbol for it), and do the same technique of finishing and stepping until we reach what looks like main to us.

At worst, even without a frame pointer, we should be able to get the address of a function early enough in the execution chain for us to consider it to be main.

Its probably a good idea to make a list of all functions that call exit. These may be of use to us. Other techniques for tracking down interesting functions include:

A stack is what is called a Last In, First Out data structure or LIFO. Think of it as a stack of plates. The most recent (last) plate pushed on top of the stack is the first one to be removed. This allows us to manage the stack with only one register if need be, namely the stack pointer or SP register.

The stack is a region of memory that is present throughout the entire lifetime of a program. It is where local variables are stored, and it is also how function call arguments are passed.

On almost all modern computers, the stack is said to grow down, that is, as elements are pushed on to it, the SP register is decremented by the size of the element pushed. From our earlier analogy, its as if the stack of plates where hung from the ceiling, new plates were inserted at the bottom, and the whole stack some sort of catch to stop them all from dumping out. That catch would be the SP register.

So the stack starts from a high memory address, and works down to a lower address. This is because another section of memory called the heap grows up, and its handy to have the two of them grow towards eachother to fill in a single empty hole in the program address space.

Note: It is easy to become confused when dealing with the stack. Remember that while it may grow down, variables are still addressed sequentially upwards. So an array of char b[4] at esp of 80 will have b[0] at 80 (right at the stack pointer), b[1] above that at 81, b[2] at 82, and b[3] at 83, which is where the stack pointer was before the push. The next push will then place the stack pointer at 76.

There are two instructions that deal with the stack directly: push and pop. Each take a register or value as an argument. Push will place its argument onto the stack, and then decrement the SP by the size of its argument (4 for pushl, 2 for pushw, 1 for pushb). //FIXME (What is pushl and push b) Pop copies the value on the top of the stack into its argument, then increments SP. Pusha and popa push and pop all the registers with one instruction. Because of speed considerations, the value is not touched, just the SP register is changed to point to the next location ot the stack. So SP is always pointing to the top value of the stack and not at invalid memory.

Normal arithmetic expressions can also be used to modify SP to make space for working directly with stack memory with other instructions.

Right before a function is called, its arguments are pushed onto the stack in reverse order. Then the call instruction pushes the address of the next instruction (ie the value of IP after call) onto the stack, and then the CPU begins executing the address of the call by copying that value into the invisible instruction pointer (IP) register.

The called function then starts with what is known as the function prolog, which pushes the current base pointer onto the stack, and then copies the current stack pointer to the base pointer, and then subtracts from SP enough space to hold all local variables (and then some!). The base pointer is then used to reference variables and parameters during function execution, since its value is not affected by pushes and pops. Thus, parameters all have fixed positive offsets from the BP, where as local variables all have fixed negative offsets from the BP.

At the end of function execution, the base pointer is copied to the stack pointer during ret, and the return address is popped off the stack and placed into the invisible IP register to return to the caller function.

Note: Unless -fomit-frame-pointer is specified, gcc always generates code that references local variables by negative offsets from the BP instead of positive offsets from the SP.

Two's complement is specific way signed integers are represented in pretty much all modern computers. This is due to the fact that two's complement form has several advantages:

It should be noted that when using signed values the ranges of number that can be represented by a specific number of bits is less than the usual. The range is -(2^n-1) to +(2^n-1)-1

There are several ways to convert any unsigned binary number into signed two's complement form. The most intuitive and easy to remember is the following Complement each bit of the number and add one. Let's find how -13 is represented, so we convert it into its binary form:

0000 1101

 Then invert all the bits.
 1111 0010

 Now add one to it.
 1111 0011

 So 1111 0011 is -13 in two's complement.


Second method is to complement all the bits to the left of the rightmost 1 bit, but not including it (but not the rightmost bit, for example 0001 0100). It sounds a bit complicated, but is easier once you figure out how it is done. Let's get back to the example of -13.

0000 1101
         ^
 Invert the bits to the left of the rightmost one.
 1111 0011


There you go. We get the number without second step of adding one. It can be proven why this method works, but we are not in class. Yet a third method is to subtract the number from 2ⁿ. Here is how it works.

 1000 0000
 -
  0000 1101
  ---------
  1111 0011


There may be other ways of doing it, but if you master those, you will not need to remember any more. To convert a negative number in two's complement, you apply the exact same procedure as described and you get back the positive value for the number.

Now that we know what two's complement is let's look at some examples of this type of representation in reverse engineering process. Using one of the tools discussed earlier, objdump and the wrapper disasm.pl, let's look at the ls command binary. If you look at function7 (which starts at address 80495a8), lines like the following appear frequently:

 80495be:       83 c4 f8                add    $0xfffffff8,%esp


What does this instruction do? It just adds some constant to the stack pointer register (%esp). There are two ways you can look at this constant. It is either a huge unsigned number or two's complement negative number. Since we just add to the stack pointer, it does not make sense to be big number, so let's find what is the value of this number.

  f    f    f    f    f    f    f    8
 1111 1111 1111 1111 1111 1111 1111 1000

 0000 0000 0000 0000 0000 0000 0000 1000
   0    0    0    0    0    0    0    8


Now we can see that this is just the negative of 0x00000008 or just plain -8 in decimal. If you think about this, what this line does is decrement the stack pointer by 8 bytes (allocate more space).

One common difficulty in working on multiple platforms is that different platforms use different byte orders. Byte ordering refers to the physical layout of integer data in memory. There are two different orderings - little endian and big endian. When a data structure or data type is represented by more than one byte, the ordering of bytes matters. For example if we consider a long (4 bytes) let's label the least significant byte 0 and the most significant one 3. If we are on little endian machine the long will be represented in memory like this (yeah, some machines do not allow addressable bytes, but let's forget about this):

     0x040   0
      0x041   1
      0x042   2
      0x043   3


On a big endian machine on the other hand, the long will be layed out like that:

     0x040   3
      0x041   2
      0x042   1
      0x043   0


Now let's look at an example. The easiest way to see the difference in byte ordering is to look at how a long is stored in memory on different architectures. Here is an example program that will demonstrate it.

#include <stdio.h>

 int main() {

     long longval = 123456789;

     printf("%s\n", test);

 }


After compiling it with debugging info, let's run it and see what will be the result. The first run is on Intel-based machine.

bash$ uname -a
 Linux slack 2.4.20 #5 Tue Dec 31 00:01:00 CST 2002 i686 unknown


bash$ gdb ./a.out
 GNU gdb 5.2.1
 This GDB was configured as "i386-slackware-linux"...
 (gdb) break main
 Breakpoint 1 at 0x8048338: file test.c, line 5.
 (gdb) run
 Breakpoint 1, main () at test.c:5
 5               long longval = 123456789;
 (gdb) stepi
 8               printf("value is %d\n", longval);

 Let's get the address of longval in memory
 (gdb) print &longval
 $2 = (long int *) 0xbffff234

 Let's print the contents of longval as a word
 (gdb) x/w 0xbffff234
 0xbffff234:     0x075bcd15

 Let's print the contents of longval as 4 consecutive bytes
 (gdb) x/4b 0xbffff234
 0xbffff234:     0x15    0xcd    0x5b    0x07
 (gdb) quit



The second run was on Sparc machine running Solaris.

remsun1> uname -a
 SunOS remsun1 5.8 Generic_108528-16 sun4u sparc SUNW,Sun-Fire-280R


remsun1> gdb ./a.out
 GNU gdb 4.18
 This GDB was configured as "sparc-sun-solaris2.7"...
 (gdb) break main
 Breakpoint 1 at 0x10564: file test.c, line 5.
 (gdb) run
 Breakpoint 1, main () at test.c:5
 5               long longval = 123456789;
 (gdb) stepi
 0x10568 5               long longval = 123456789;

 Let's get the address of longval in memory
 (gdb) print &longval
 $1 = (long int *) 0xffbefaec

 Let's print the contents of longval as a word
 (gdb) x/1w 0xffbefaec
 0xffbefaec:     0x075bcd15

 Let's print the contents of longval as 4 consecutive bytes
 (gdb) x/4b 0xffbefaec
 0xffbefaec:     0x07    0x5b    0xcd    0x15
 (gdb)



One can clearly see how on the Sparc machine the individual bytes are in the same order as in the printed word, whereas the Intel machine has it reverse.

This is the difference in byte ordering. In order for different hosts on the same network to be able to communicate and the exchanged data to make sense, they agree on common byte ordering. In modern networking the data is transmitted in big endian byte ordering i.e. most significant byte comes first. On the i80x86 the host byte order is Least Significant Byte first, whereas the network byte order, as used on the Internet, is Most Significant Byte first.

The secret to understanding assembly code is to always work with a sheet of paper and a pencil. When you first sit down, draw out a table for all 6 registers A, B, C, D, SI, and DI. Keep track of the high and low portions as well. Each new line of this table should represent a modification of a register, so the last value in each register column is the current value of that register.

Next, draw out a long column for the stack, and leave space on the sides to place the BP and SP registers as they move down. Be sure to write all values into the stack as they are placed there, including ret and the stored BP.

In AT&T syntax, all instructions are of the form:

mnemonic src, dest

Standalone numerical constants are prepended with a $. Hexadecimal numbers always start with 0x (as opposed to ending in h). Registers are specified with a % sign, ie %eax.

Dereferencing or pointer representation is of the form disp(%base, %index, scale), where the resulting address is disp + %base + %index*scale. disp and scale are constants (no $), and %base and %index are registers. Any of these 4 may be omitted, leaving either blank space and then a comma, or simply leaving off the argument, and all remaining arguments. For example, 4(%eax) means memory address 4+%eax, where as (,%eax,4) means %eax*4. This compact notation makes array indexing easy.

From here, it is simply a matter of understanding what each assembly mnemonic does. Most common mnemonics are obvious, but you can find a complete description of all the Intel instructions (in agonizing detail) at Intel's Developer Site. Volume 2 contains the instruction list. Keep in mind that in Intel syntax, operands are in the reverse order of AT&T syntax (ie, mnemonic dest,src).

In assembly, the only flow control mechanisms are branching and calling. So every control structure is built up from a combination of goto's and conditional branches. Lets look at some specific examples.

These examples were all compiled using GCC 2.95.4 under Debian 3.0/Testing. A good exercise would be to go compile some of these examples with GCC 3.0 under high optimizations, changing some things around and viewing the resulting asm to get a feel for that new compiler and how it does things, as code it generates will begin to become more ubiquitous as time goes on. It was still considered rather unstable as of this writing, so we opted for the older GCC for all these examples for that reason.

Chapter 7. Debugging

DDD is the Data Display Debugger, and is a nice GUI front-end to gdb, the GNU debugger. For a long time, the authors believed that the only thing you really needed to debug was gdb at the command line. However, when reverse engineering, the ability to keep multiple windows open with stack contents, register values, and disassembly all on the same workspace is just too valuable to pass up.

Also, DDD provides you with a gdb command line window, and so you really aren't missing anything by using it. Knowing gdb commands is useful for doing things that the UI is too clumsy to do quickly. gdb has a nice built-in help system organized by topic. Typing help will show you the categories. Also, DDD will update the gdb window with commands that you select from the GUI, enabling you to use the GUI to help you learn the gdb command line. The main commands we will be interested in are run, break, cont, stepi, nexti, finish, disassemble, bt, info [registers/frame], and x. Every command in gdb can be followed by a number N, which means repeat N times. For example, stepi 1000 will step over 1000 assembly instructions.

Viewing Assembly

Ok, so now that we've got a breakpoint set somewhere, (let's say __libc_start_main). To view the assembly in DDD, go to the View menu and select source window. As soon as we enter a function, the disassembly will be shown in the bottom half of the source window. To change the syntax to the more familar Intel variety, go to Edit->Gdb Settings... under Disassembly flavor. This can also be accomplished with set disassembly-flavor intel from the gdb prompt. But using the DDD menus will save your settings for future sessions.

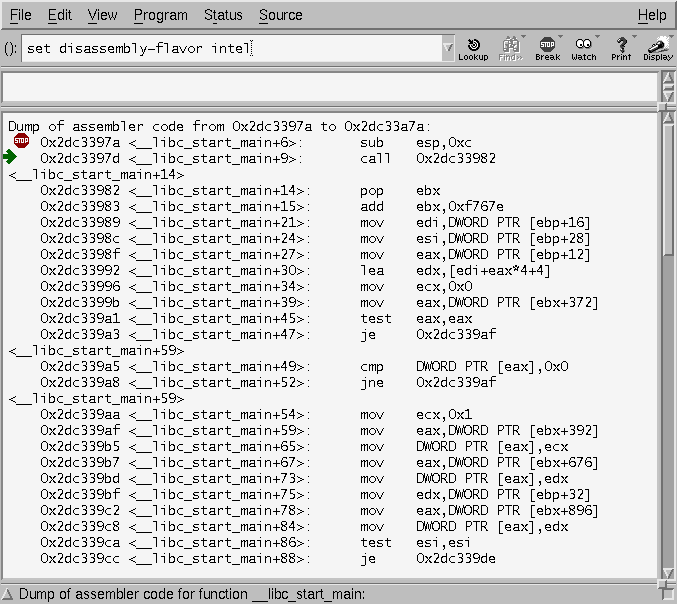

Figure 7.1. ASM in DDD

Viewing Memory and the Stack

In gdb, we can easily view the stack by using the x command. x stands for Examine Memory, and takes the syntax x /<Number><format letter><size letter> <ADDRESS>. Format letters are (octal), x(hex), d(decimal), u(unsigned decimal), t(binary), f(float), a(address), i(instruction), c(char) and s(string). Size letters are b(byte), h(halfword), w(word), g(giant, 8 bytes). For example, x /32xw 0x400000 will dump 32 words (32 bit integers) starting at 0x400000. Note that you can also use registers in place of the address, if you prefix them with a $. For example, x /32xw $esp will view the top 32 words on the stack.

DDD has some nice capabilities for viewing arbitrary dumps of memory relating to the registers. Go to View->Data Window... Once the Data Window is open, go to Display (hold down the mouse button as you click), and go to Other.. You can type in any symbol, variable, expression, or gdb command (in backticks) in this window, and it will be updated every time you issue a command to the debugger. A couple good ones to do would be `x /32xw $esp` and `x/16sb $esp. Click the little radio button to add these to the menu, and you can then open the stack from this display and it will be updated in real time as you step through your program.

Figure 7.2. Stack Displays with New Display Window

-> Example using gdb to set breakpoints in functions with and without debugging symbols.

-> FIXME: Test watchpoints

WinDbg is part of the standart Debugging Tools for Microsoft Windows that everyone can download for free from. Microsoft offers few different debuggers, which use common commands for most operations and ofcourse there are cases where they differ. Since WinDbg is a GUI program, all operations are supposed to be done using the provided visual components. There is also a command line embeded in the debugger, which lets you type commands just like if you were to use a console debugger like ntsd. The following section briefly mentions what commands are used to do common everyday tasks. For more complete documentation check the Help file that comes with WinDbg. An example debugging session is presented to help clarify the usage of the most common commands.

So at this point we now know how to write our programs on an extremely low level, and thus produce an executable file that very closely matches what we want. But the question is, how is our program code now actually stored on disk?

We'll begin our investigation into executable formats by looking at the ELF binary specification and related tools, and then move on to examine the PE binary specification, and related tools for dealing with those binaries.

/* ELF File Header */
 typedef struct
 {
   unsigned char e_ident[EI_NIDENT];     /* Magic number and other info */
   Elf32_Half    e_type;                 /* Object file type */
   Elf32_Half    e_machine;              /* Architecture */
   Elf32_Word    e_version;              /* Object file version */
   Elf32_Addr    e_entry;                /* Entry point virtual address */
   Elf32_Off     e_phoff;                /* Program header table file offset */
   Elf32_Off     e_shoff;                /* Section header table file offset */
   Elf32_Word    e_flags;                /* Processor-specific flags */
   Elf32_Half    e_ehsize;               /* ELF header size in bytes */
   Elf32_Half    e_phentsize;            /* Program header table entry size */
   Elf32_Half    e_phnum;                /* Program header table entry count */
   Elf32_Half    e_shentsize;            /* Section header table entry size */
   Elf32_Half    e_shnum;                /* Section header table entry count */
   Elf32_Half    e_shstrndx;             /* Section header string table index */
 } Elf32_Ehdr;


/* Program segment header.  */

 typedef struct
 {
   Elf32_Word    p_type;                 /* Segment type */
   Elf32_Off     p_offset;               /* Segment file offset */
   Elf32_Addr    p_vaddr;                /* Segment virtual address */
   Elf32_Addr    p_paddr;                /* Segment physical address */
   Elf32_Word    p_filesz;               /* Segment size in file */
   Elf32_Word    p_memsz;                /* Segment size in memory */
   Elf32_Word    p_flags;                /* Segment flags */
   Elf32_Word    p_align;                /* Segment alignment */
 } Elf32_Phdr;


/* Section header.  */

 typedef struct
 {
   Elf32_Word    sh_name;                /* Section name (string tbl index) */
   Elf32_Word    sh_type;                /* Section type */
   Elf32_Word    sh_flags;               /* Section flags */
   Elf32_Addr    sh_addr;                /* Section virtual addr at execution */
   Elf32_Off     sh_offset;              /* Section file offset */
   Elf32_Word    sh_size;                /* Section size in bytes */
   Elf32_Word    sh_link;                /* Link to another section */
   Elf32_Word    sh_info;                /* Additional section information */
   Elf32_Word    sh_addralign;           /* Section alignment */
   Elf32_Word    sh_entsize;             /* Entry size if section holds table */
 } Elf32_Shdr;




Working with the PE Program Format

Unfortunately, the PE format can be a bit of a maze, so we're only going to discuss those sections relevant to code modification, namely the Import Address Table and code sections. FIXME: what is the equiv of _start for Microsoft Windows. FIXME: How does COM use its directory entry?

So lets start with some basic concepts. There are essentially four ways to refer to a location in a PE image (and all are used by the various data structures in some form or another).

1. Executable File Offset

   This is simply the offset from the beginning of the executable file.

2. Relative Virtual Address (RVA)

   This is the offset from the base address of the executable image once it has been mapped into memory. Note that this is not the same as the executable file offset. Various sections within the executable file have to start on page aligned boundaries, and as a result, holes must be present in memory that are not present in the disk image. This is a big source of confusion when initially working with PE's.

3. Section Offset

   This is the offset from whatever data structure or section you are currently in. Yes, in some cases it is used in lieu of the RVA. (FIXME: Build a semi-complete list of these).

4. Virtual Address

   This is a full pointer into the address space of the process. Virtual addresses can be obtained by the formula

   VA = RVA + base address

   . For almost all executables, the base address is 0x400000. For DLL's, the base address can vary, as the address requested by the DLL in its header is much more likely to conflict with another DLL. The accompanying source code (FIXME: Clean up and Link in) for function injection contains a function that converts RVA's to VA's or file offsets, depending upon the context.

PE Headers

So there are three main header types to a PE file. It's going to be a lot to keep track of. Luckily, the PEView utility can make things much more easy to understand. We suggest using it on an executable and following along so you don't get lost. These headers and the supporting macros are all defined in WinNT.h in the PlatformSDK include directory.

Figure 8.1. PEView Executable Viewer

IMAGE_DOS_HEADER

The first is the IMAGE_DOS_HEADER. It is at file offset and RVA 0.

Figure 8.2. IMAGE_DOS_HEADER

typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
     WORD   e_magic;                     // Magic number
     WORD   e_cblp;                      // Bytes on last page of file
     WORD   e_cp;                        // Pages in file
     WORD   e_crlc;                      // Relocations
     WORD   e_cparhdr;                   // Size of header in paragraphs
     WORD   e_minalloc;                  // Minimum extra paragraphs needed
     WORD   e_maxalloc;                  // Maximum extra paragraphs needed
     WORD   e_ss;                        // Initial (relative) SS value
     WORD   e_sp;                        // Initial SP value
     WORD   e_csum;                      // Checksum
     WORD   e_ip;                        // Initial IP value
     WORD   e_cs;                        // Initial (relative) CS value
     WORD   e_lfarlc;                    // File address of relocation table
     WORD   e_ovno;                      // Overlay number
     WORD   e_res[4];                    // Reserved words
     WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
     WORD   e_oeminfo;                   // OEM information; e_oemid specific
     WORD   e_res2[10];                  // Reserved words
     LONG   e_lfanew;                    // File address of new exe header
   } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;


The IMAGE_DOS_HEADER is a relic from the (you guess it) DOS days. It's only function now the e_lfanew field, which gives the offset to the of the IMAGE_NT_HEADERS structure, which is where the real action starts. Technically this is a file offset, but at this point, allignment isn't an issue, and it can be intrepreted as an RVA as well. One other thing to note: e_magic has the value IMAGE_DOS_HEADER, which is "MZ" or 0x5A4D.

IMAGE_NT_HEADERS

Next up on the chopping block is the IMAGE_NT_HEADERS:

Figure 8.3. IMAGE_NT_HEADERS

typedef struct _IMAGE_NT_HEADERS {
     DWORD Signature;
     IMAGE_FILE_HEADER FileHeader;
     IMAGE_OPTIONAL_HEADER32 OptionalHeader;
 } IMAGE_NT_HEADERS32, *PIMAGE_NT_HEADERS32;


Not really much of interest at this level. That Signature field is just to make sure you're in the right place, and has the value IMAGE_NT_SIGNATURE, which is PE00, or 0x00004550. If we open up that IMAGE_FILE_HEADER:

Figure 8.4. IMAGE_FILE_HEADER

 typedef struct _IMAGE_FILE_HEADER {
     WORD    Machine;
     WORD    NumberOfSections;
     DWORD   TimeDateStamp;
     DWORD   PointerToSymbolTable;
     DWORD   NumberOfSymbols;
     WORD    SizeOfOptionalHeader;
     WORD    Characteristics;
 } IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;


This essentially is only useful (for our purposes) for knowing the number of sections and the size of the optional header (which isn't very optional). The optional header size is needed because there can be a varying number of directory entries in the header, and this size is used to find the start of the section table (with the IMAGE_FIRST_SECTION() macro).

Figure 8.5. IMAGE_OPTONAL_HEADERS

#define IMAGE_NUMBEROF_DIRECTOR_ENTRIES 16

 typedef struct _IMAGE_OPTIONAL_HEADER {
     WORD    Magic;
     BYTE    MajorLinkerVersion;
     BYTE    MinorLinkerVersion;
     DWORD   SizeOfCode;
     DWORD   SizeOfInitializedData;
     DWORD   SizeOfUninitializedData;
     DWORD   AddressOfEntryPoint;
     DWORD   BaseOfCode;
     DWORD   BaseOfData;
     DWORD   ImageBase;
     DWORD   SectionAlignment;
     DWORD   FileAlignment;
     WORD    MajorOperatingSystemVersion;
     WORD    MinorOperatingSystemVersion;
     WORD    MajorImageVersion;
     WORD    MinorImageVersion;
     WORD    MajorSubsystemVersion;
     WORD    MinorSubsystemVersion;
     DWORD   Win32VersionValue;
     DWORD   SizeOfImage;
     DWORD   SizeOfHeaders;
     DWORD   CheckSum;
     WORD    Subsystem;
     WORD    DllCharacteristics;
     DWORD   SizeOfStackReserve;
     DWORD   SizeOfStackCommit;
     DWORD   SizeOfHeapReserve;
     DWORD   SizeOfHeapCommit;
     DWORD   LoaderFlags;
     DWORD   NumberOfRvaAndSizes;
     IMAGE_DATA_DIRECTORY DataDirectory[IMAGE_NUMBEROF_DIRECTORY_ENTRIES];
 } IMAGE_OPTIONAL_HEADER32, *PIMAGE_OPTIONAL_HEADER32;



So the interesting fields here are ImageBase, AddressOfEntryPoint, SectionAlignment, and the CheckSum (FIXME: do they ever use this?). After that comes the DataDirectory, which contains basicaly the root of an entire filesystem heirarchy within the executable. Luckily most executables only use the top level of this filesystem.

Figure 8.6. IMAGE_DATA_DIRECTORY

typedef struct _IMAGE_DATA_DIRECTORY {
     DWORD   VirtualAddress; // RVA, NOT VA!
     DWORD   Size;
 } IMAGE_DATA_DIRECTORY, *PIMAGE_DATA_DIRECTORY;


So the array of these is what makes up the end of the optional header. Don't be fooled by that name, it is in fact a relative virtual address. Lets have a look at the data structure for the second array index (ie index 1). Going to this RVA will take us to the import directory, which is an array of DLL's that this PE file is linked against.

Figure 8.7. IMAGE_IMPORT_DIRECTORY

 typedef struct _IMAGE_IMPORT_DESCRIPTOR {
   union {
       DWORD   Characteristics;    // 0 for terminating null import descriptor
       DWORD   OriginalFirstThunk; // RVA to original unbound IAT (PIMAGE_THUNK_DATA)
   };
   DWORD   TimeDateStamp;          // 0 if not bound,
                                   // -1 if bound, and real date\time stamp
                                   //     in IMAGE_DIRECTORY_ENTRY_BOUND_IMPORT (new BIND)
                                   // O.W. date/time stamp of DLL bound to (Old BIND)

   DWORD   ForwarderChain;         // -1 if no forwarders
   DWORD   Name;
   DWORD   FirstThunk;             // RVA to IAT (if bound this IAT has actual addresses)
 } IMAGE_IMPORT_DESCRIPTOR;
 typedef IMAGE_IMPORT_DESCRIPTOR UNALIGNED *PIMAGE_IMPORT_DESCRIPTOR;




So these fields can be a bit confusing, mostly because at this point, the PE format itself gets a bit confusing. First off, the OriginalFirstThunk is an RVA, as is Name and FirstThunk. So this is important. Name isn't a pointer to an ASCII string, but an RVA to one, which you must convert. The last import descriptor in the file will have zeroes for all of its fields and it serves as an end marker.

As the comments indicate, there are in fact two import tables for each DLL. When non-zero, OriginalFirstThunk refers to the "Unbound" Import Table. FirstThunk, on the other hand, refers to the Import Address Table.

The Import Tables

One data structure describes both of these import tables:

Figure 8.8. IMAGE_THUNK_DATA

typedef struct _IMAGE_THUNK_DATA64 {
     union {
         ULONGLONG ForwarderString;  // PBYTE
         ULONGLONG Function;         // PDWORD
         ULONGLONG Ordinal;
         ULONGLONG AddressOfData;    // PIMAGE_IMPORT_BY_NAME
     } u1;
 } IMAGE_THUNK_DATA64;
 typedef IMAGE_THUNK_DATA64 * PIMAGE_THUNK_DATA64;



In many executables files, both of these tables look exactly the same. The reason for this is that the IAT is rewritten when the executable is loaded into memory, and at that point contains the actual addresses of imported functions (hence the Function member of the union). It then servers a purpose similar to the PLT we saw in the ELF format. As the name OriginalThunk suggests, the "Unbound" Import Table remains unchanged, to preserve function name and ordinal information (to what end, no one seems to really know. FIXME: Maybe LoadLibrary uses this to remap functions if DLL's need to be shuffled around?). In some executables, the IAT can come pre-bound, and filled in with expected addresses already as an efficiency mechanism.

But, the complexities don't end there. An imported function can be listed by name, or it can be listed by an ordinal number which represents its position in the DLL's export table. If it is listed by an ordinal number, high bit (1<<31, or 0x80000000) of this union is set. If it is not set, then it is either an RVA to a forwarder string, a function address (which is a Virtual Address), or an RVA to a structure that contains the function name (FIXME: How are these three differentiated?)

The Rest

So there's quite a bit more to the PE format than we discussed here. Luckly, most if it isn't directly relevant. Our ticket to paradise is that Function member field of the Import Address Table. Modifying him will allow us to drop in any old arbitrary function we want, as we will cover in the Code modification Chapter. Things you might want to cover if you're curious are the export tables and the COM data directory. (FIXME: Consider documenting COM tables).

PE in Memory

FIXME: Describe what PE looks like in memory. Include memory addresses, and a diagram of process space.

Chapter 9. Code Modification

So now we know the tools to analyze our programs and find functions of interest to us even in programs without source code. We can understand the assembly that makes them up, and can write assembly of our own to do what we want. We know how a program looks on the disk and how that corresponds to what the program looks like in memory. Knowledge is power, and we know a lot.

Reasons for Code Modification

Code modification is most useful if we wish to change the behavior of programms for which we do not have source code on hand. It is also handy when trying to skirt copy protection of various kinds.

Library Hooking

LD_PRELOAD

This is an environment variable that allows us to add a library to the execution of a particular program. Any functions in this library automatically override standard library functions. Sorry, you can't use this with suid programs.

Example:

% gcc -o preload.so -shared preload.c -ldl

% LD_PRELOAD=preload.so ssh students.uiuc.edu

Instruction Modification

Since the smallest unit of code is the instruction, it follows that the simplest form of code modification is instruction modification. In instruction modification, we are looking to change some property of a specific instruction. Recall from the assembly section that each instruction has 2 parts: The mnemonic and the arguments. So our choices are limited.

The best way to modify instructions is through HT Editor, which was mentioned earlier in the ELF section. HTE has a hex editor mode where we can edit the hex value of an instruction and see the assembly updated in real time. (TODO: instructions, screenshots of HTE)

Editing the arguments

Editing the arguments of an assembly instruction is easy. Simply look at the hex value of the assembly instruction's argument, and see where it lies in the hex bytes for that instruction. HTE will allow you to overwrite these values with values of your own. (Be careful with byte ordering!). TODO: Example1.

Editing the Mnemonic

This is far more tricky.

Single Instruction Insertion

Single Function Insertion

Use unused space as found by disasm.pl (be careful about main)

Multiple Function Insertion

Trickery.. We're working on a util to modify ELF programs and insert functions. What about using MMAP?? (P.S. Can you unmap executable memory to modify it... if they are doing an MD5 of their executable)

Attacking copy protection

Lest I be accused of hiding in my ivory tower, lets look a concrete application of these ideas, and some techniques (:

Chapter 12. Extra Resources
